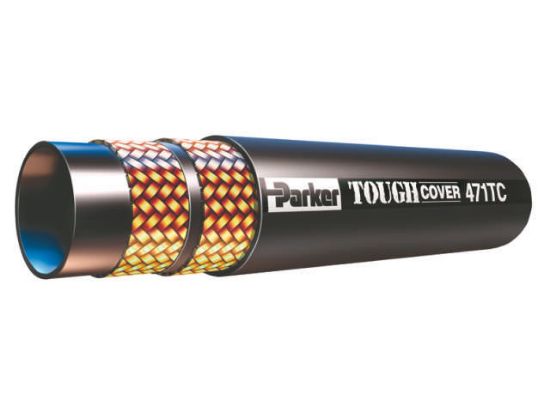

471TC-10 - Hydraulic Industry Standard Hose 2500-5800 PSI – 471 Hose

Parker's 471 hose is a hydraulic industry standard hose that has a pressure range of 2500-5800 PSI, with a synthetic rubber inner tube which provides wide fluid compatibility.

Availability:	Backordered
Partner Available:	4699 in stock

SKU 471TC-10

$10.87/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (size)	-10
Hose Cover Type	Tough Cover	Minimum Operating Temperature	-40 °C
Maximum Operating Temperature	100 °C	Minimum Bend Radius	100 mm
Weight	0.66 kg/m	Cover Material	Synthetic Rubber Abrasion Resistant
Outside Diameter	24 mm	Compatible Fitting	43 Series
Hose Inner Tube Material	Synthetic Rubber	Hose Reinforcement Material	2 Braids of Steel Wire
Nominal Hose Inside Diameter	16 mm	Inside Diameter	16 mm
Media	Lubricants	Specifications Met	DNV
Vacuum Pressure Rating	95 kPa	Maximum Operating Pressure	3625 psi
Inner Diameter	0.625 Inch	UOM	FT
Material	Rubber	Pkg Qty/UOM	275 FT
Pkg Qty	275	Working Pressure	3625 PSI (250 bar)
Parker Group	Fluid Connector	Inch/Metric	Inch
Parker Division	Hose Products	Inner Diameter	0.625 Inch
Inner Diameter Inch/mm	Inch	Material	Rubber
Working Pressure Range	3000 to 3999 PSI (207 to 276 bar)	Application	Hydraulic
Hose Pressure Range	Medium	Hose Category	Hydraulic Industry Standard
Distinct Properties	Tough Cover	Series	471TC
