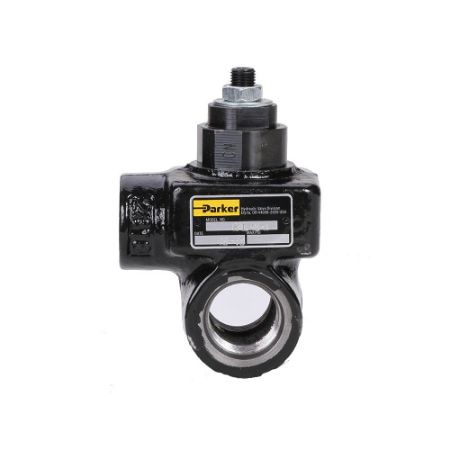

In-Line Mounted Pilot Operated Relief Valve - RPJL Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker’s RPJL In-line Relief valves are pilot operated, poppet type relief valve. The valve is a compact, low profile relief design that is screw adjustable from 500 to 5000 PSI. Their best application is a main system relief where smooth consistent performance is required.
Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• Compact, low profile design
• Hardened and ground poppet
• High-tensile compacted graphite body
• Pilot operated for smooth, stable operation
• Standard porting options are 1/2” NPT and 3/4” NPT as well as SAE-10 and SAE-12
• Rated at 5000 PSI with SAE ports with a maximum recommend pump or actuator flow of 25 GPM
Applications:
• Suitable for various mobile applications
Read More...Markets:
• Aerial
• Agricultural Machinery
• Construction Equipment
• Defense
• Forestry Equipment
• Marine
• Material Handling Equipment
• Mining
• Misc Transportation
• Oil & Gas
• Other Mobile
• Other Natural Resources
• Rail
• Refuse
• Turf Equipment
• Vocational and Municipal Equipment
Features/Benefits:
• Compact, low profile design
• Hardened and ground poppet
• High-tensile compacted graphite body
• Pilot operated for smooth, stable operation
• Standard porting options are 1/2” NPT and 3/4” NPT as well as SAE-10 and SAE-12
• Rated at 5000 PSI with SAE ports with a maximum recommend pump or actuator flow of 25 GPM
Applications:
• Suitable for various mobile applications
In-Line Mounted Pilot Operated Relief Valve - RPJL Series - RPJL-10-A
Parker’s RPJL In-line Relief valve rated at 25 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.
$529.20
In-Line Mounted Pilot Operated Relief Valve - RPJL Series - RPJL-12-A
Parker’s RPJL In-line Relief valve rated at 25 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.
$529.20
In-Line Mounted Pilot Operated Relief Valve - RPJL Series - RPJL-50-A
Parker’s RPJL In-line Relief valve rated at 25 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.
$529.20
In-Line Mounted Pilot Operated Relief Valve - RPJL Series - RPJL-75-A
Parker’s RPJL In-line Relief valve rated at 25 GPM is designed for limiting the maximum pressure which can be applied to the portion of the hydraulic circuit where it is installed.
$504.00
