Inch Brass Compression Fittings
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker's compression fittings are economical and offered in both extrusions and forgings. These compression fittings require no flaring, soldering, tube preparation or special tools to operate. Compression fittings are especially useful in installations that may require occasional disassembly or partial removal for maintenance since the fitting can be broken and remade without affecting the integrity of the joint. Compression fittings are also used in situations where a heat source, in particular a soldering torch, is prohibited.
Use with copper, aluminum and the following Parker Parflex Division tubing:
• Polyethylene
• Nylon
• Polypropylene
Markets:
• Industrial
• Packaging
• Pneumatic
• Printing
• Compressors
• Marine
Features/Benefits:
• All brass construction
• Economical
• Long Nut for vibration
• UL listed for flammable liquid
• Meets SAE J-512
• Acetal sleeve for use with thermoplastic tubing
Applications:
• Air lines
• Lubrication lines
• Cooling lines
• Fluid transfer
• Water lines
• Automotive process
Custom configurations and sizes are available upon request. Contact us for additional information.
| Action | SKU | Availability | Partner Available | Price | UOM | Body Material | Connection 1 Size | Connection 1 Type | Product Style | Body Material | Maximum Operating Temperature | Dimensional Weight | Nut Material | Maximum Operating Pressure | Specifications Met | Media | Weight | Minimum Operating Temperature | Quantity per Box | Tube Material | Sleeve Material | Connection 2 Size | Configuration | Connection 2 Type | Shape |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

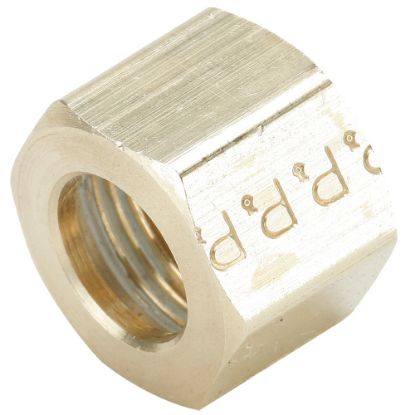

| 61C-10 | 26 in stock | 209 in stock | $5.69/each | EA | Brass, Forged | 5/8" | Compression | Nut | Brass | 121 °C | 0.1104 lb | Brass | 650 psi | SAE J-512 | Water, air, inert and non-combustible gasses | na | -54 °C | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | |||||
| 61C-12 | 36 in stock | 119 in stock | $8.94/each | EA | Brass, Forged | 3/4" | Compression | Nut | Brass | 250 °F | 0.1104 lb | Brass | 37.9 bar | SAE J-512 | Water, air, inert and non-combustible gasses | na | -65 °F | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | |||||
| 61C-14 | Backordered | 11 in stock | $10.91/each | EA | Brass, Forged | 7/8" | Compression | Nut | Brass | 250 °F | 0.1104 lb | Brass | 24.1 bar | SAE J-512 | Water, air, inert and non-combustible gasses | na | -65 °F | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | |||||
| 61C-2 | 97 in stock | 1123 in stock | $0.84/each | EA | Brass, Forged | 1/8" | Compression | Nut | Brass | 121 °C | 0.0276 lb | Brass | 27 bar | na | Water, air, inert and non-combustible gasses | na | -65 °F | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | |||||
| 61C-3 | 1060 in stock | 1040 in stock | $0.96/each | EA | Brass, Forged | 3/16" | Compression | Nut | Brass | 250 °F | 0.0276 lb | Brass | 27 bar | SAE J-512 | Water, air, inert and non-combustible gasses | na | -54 °C | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | |||||
| 61C-4 | 675 in stock | 7653 in stock | $1.12/each | EA | Brass, Forged | 1/4" | Compression | Nut | Brass | 121 °C | 0.0276 lb | Brass | 20 bar | SAE J-512 | Water, air, inert and non-combustible gasses | na | -65 °F | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | |||||
| 61C-5 | 142 in stock | 469 in stock | $1.31/each | EA | Brass, Forged | 5/16" | Compression | Nut | Brass | 121 °C | 0.0568 lb | Brass | 82.7 bar | na | Water, air, inert and non-combustible gasses | na | -65 °F | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | |||||
| 61C-6 | 3551 in stock | 2538 in stock | $1.41/each | EA | Brass, Forged | 3/8" | Compression | Nut | Brass | 250 °F | 0.0276 lb | Brass | 1000 psi | SAE J-512 | Water, air, inert and non-combustible gasses | na | -54 °C | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | |||||
| 61C-7 | Backordered | 256 in stock | $3.03/each | EA | Brass, Forged | 7/16" | Compression | Nut | Brass | 121 °C | Brass | 900 psi | na | Water, air, inert and non-combustible gasses | na | -65 °F | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||||||
| 61C-8 | 76 in stock | 549 in stock | $2.93/each | EA | Brass, Forged | 1/2" | Compression | Nut | Brass | 121 °C | Brass | 51.7 bar | na | Water, air, inert and non-combustible gasses | na | -65 °F | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||||||

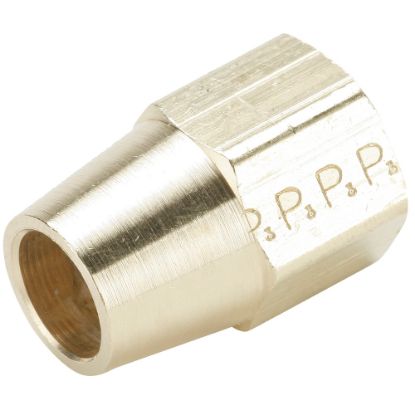

| 61CL-10 | Backordered | 10 in stock | $18.89/each | EA | Brass, Forged | 5/8" | Compression | Long Nut | Brass | 250 | Brass | 44.8 | SAE J-512 | Water, air, inert and non-combustible gasses | na | -65 | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||||||
| 61CL-12 | Backordered | 9 in stock | $15.62/each | EA | Brass, Forged | 3/4" | Compression | Long Nut | Brass | 250 | Brass | 37.9 | SAE J-512 | Water, air, inert and non-combustible gasses | na | -65 | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||||||
| 61CL-4 | 5 in stock | 47 in stock | $3.18/each | EA | Brass, Forged | 1/4" | Compression | Long Nut | Brass | 250 °F | Brass | 1400 psi | na | Water, air, inert and non-combustible gasses | na | -54 °C | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||||||
| 61CL-5 | 12 in stock | 48 in stock | POR | EA | Brass, Forged | 5/16" | Compression | Long Nut | Brass | 250 | Brass | 1200 | SAE J-512 | Water, air, inert and non-combustible gasses | na | -65 | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||||||
| 61CL-6 | 9 in stock | 68 in stock | $4.99/each | EA | Brass, Forged | 3/8" | Compression | Long Nut | Brass | 121 °C | Brass | 200 psi | SAE J-512 | Water, air, inert and non-combustible gasses | na | -65 °F | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||||||
| 61CL-8 | Backordered | 36 in stock | $10.97/each | EA | Brass, Forged | 1/2" | Compression | Long Nut | Brass | 250 °F | Brass | 14 bar | SAE J-512 | Water, air, inert and non-combustible gasses | na | -65 °F | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | ||||||
| 62C-10 | 8 in stock | 77 in stock | $24.10/each | EA | Brass, Forged | 5/8" | Compression | Brass | 250 °F | 0.2759 lb | Brass | 650 psi | na | Water, air, inert and non-combustible gasses | na | -65 °F | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | 5/8" | Tube to Tube | Compression | Union | ||
| 62C-10-6 | Backordered | 1 Limited Stock | $26.57/each | EA | Brass, Forged | 5/8" | Compression | Brass | 250 °F | Brass | 10 bar | SAE J-512 | Water, air, inert and non-combustible gasses | na | -65 °F | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | 3/8" | Tube to Tube | Compression | Union Reducer | |||
| 62C-12 | 4 in stock | 18 in stock | $45.46/each | EA | Brass, Forged | 3/4" | Compression | Brass | 250 °F | Brass | 7 bar | SAE J-512 | Water, air, inert and non-combustible gasses | na | -54 °C | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | 3/4" | Tube to Tube | Compression | Union | |||
| 62C-14 | Backordered | 9 in stock | $61.16/each | EA | Brass, Forged | 7/8" | Compression | Brass | 250 °F | Brass | 24.1 bar | na | Water, air, inert and non-combustible gasses | na | -54 °C | na | Copper, Aluminum, Thermoplastic | Brass, Acetal | 7/8" | Tube to Tube | Compression | Union |
