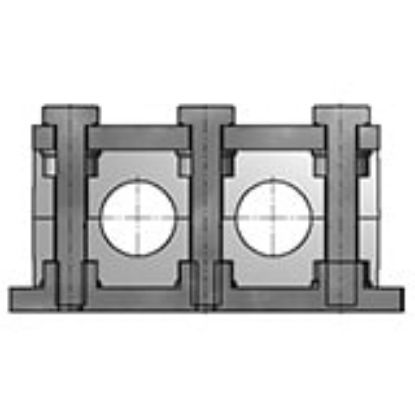

Inch Tube and Hose Clamps
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
ParKlamp Inch Tube and Hose Clamps are designed for restraining tube, pipe and hose against unwanted and potentially harmful effects of shock and vibration. Offered in polypropylene and steel, ParKlamp meets the basic envelope dimensions of DIN 3015, Part 1, and the ParKlamp clamp halves are interchangeable with the Parker metric clamp system.
Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Machine Tool
• Transportation
• Alternative Energy
• Off-Shore/Oil & Gas
Features/Benefits:
• Weld plate mounting allows user to attach a single clamp assembly to a structure of similar material by welding components together.
• Using ParKlamp can significantly reduce the risk of problems resulting from mechanical shock and vibration.
• Mounting rails allows multiple clamps to be mounted for restraining a group of tube, pipe or hose assemblies together either side-by-side or stacking configurations.
• Three Series of ParKlamp offered: Standard Load, Heavy Load and Twin.
• Offered in Sizes 1/4" through 3"
Applications:
• Hydraulic fluid and gas handling tube, pipe and hose line clamping systems
Read More...Markets:
• Construction
• Military Ground Systems
• Aerial Lift
• Agriculture
• Material Handling
• Military Marine
• Machine Tool
• Transportation
• Alternative Energy
• Off-Shore/Oil & Gas
Features/Benefits:
• Weld plate mounting allows user to attach a single clamp assembly to a structure of similar material by welding components together.
• Using ParKlamp can significantly reduce the risk of problems resulting from mechanical shock and vibration.
• Mounting rails allows multiple clamps to be mounted for restraining a group of tube, pipe or hose assemblies together either side-by-side or stacking configurations.
• Three Series of ParKlamp offered: Standard Load, Heavy Load and Twin.
• Offered in Sizes 1/4" through 3"
Applications:
• Hydraulic fluid and gas handling tube, pipe and hose line clamping systems
| Action | SKU | Availability | Partner Available | Price | UOM | Materials of Construction | Length | Part Type | Body Material | Pipe Outside Diameter | Connection Thread Size | Operating Load Duty Type | Tube Outside Diameter | Hose Inside Diameter | Dimensional Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| H6445-HPP | Backordered | 20 in stock | $30.68/each | EA | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Heavy Load | na | 1 1/4 inch | ||
| H6484HPP | Backordered | 28 in stock | $25.58/each | EA | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Heavy Load | na | 1 1/4 inch | 0.4419064748201439 lb | |
| H6498PP | Backordered | 16 in stock | $9.34/each | EA | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Standard Load | na | 1 1/2 inch | ||
| H6530-HPP | Backordered | Backordered | $33.39/each | EA | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Heavy Load | na | 1 1/2 inch | ||
| H6544HPP | 3 in stock | 15 in stock | $25.58/each | EA | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Heavy Load | na | 1 1/2 inch | ||
| H6680-HPP | Backordered | 3 in stock | $33.39/each | EA | Polypropylene | na | Clamp Halves | Polypropylene | na | na | Heavy Load | na | 2 inch | ||
| HRN | Backordered | 168 in stock | $1.39/each | EA | Steel, Zinc Nickel | na | Mounting Hardware | Steel, Zinc Nickel | na | 1/4-20 UNC inch | Standard Load | na | na | 0.039568345323741004 lb | |
| HRN-SS | Backordered | Backordered | $14.44/each | EA | Stainless Steel | na | Mounting Hardware | Stainless Steel | na | 1/4-20 UNC inch | Standard Load | na | na | ||
| LP-1A | Backordered | 19 in stock | $0.71/each | EA | Steel, Zinc Nickel | na | Plates | Steel, Zinc Nickel | na | na | Standard Load | 1/4, 3/8 inch | na | ||
| LP-2 | Backordered | 91 in stock | $0.55/each | EA | Steel, Zinc Nickel | na | Plates | Steel, Zinc Nickel | na | na | Standard Load | 1/2, 5/8 inch | na | ||
| LP-3 | 14 in stock | 193 in stock | $0.59/each | EA | Steel, Zinc Nickel | na | Plates | Steel, Zinc Nickel | 1/2 inch | na | Standard Load | 3/4, 1 inch | 1/4 to 5/8 inch | 0.039568345323741004 lb | |
| LP-4 | 15 in stock | 35 in stock | $0.70/each | EA | Steel, Zinc Nickel | na | Plates | Steel, Zinc Nickel | 3/4 inch | na | Standard Load | na | na | ||
| LP-5 | 9 in stock | 42 in stock | $0.84/each | EA | Steel, Zinc Nickel | na | Plates | Steel, Zinc Nickel | 1 inch | na | Standard Load | 1 1/4, 1 1/2 inch | 1, 1 1/4 inch | ||
| LP-6 | Backordered | Backordered | $0.92/each | EA | Steel, Zinc Nickel | na | Plates | Steel, Zinc Nickel | 1 1/2 inch | na | Standard Load | 2 inch | 1 1/2 inch | ||
| LPH-3 | 52 in stock | 26 in stock | $5.08/each | EA | Steel, Zinc Phosphate | na | Plates | Steel, Zinc Phosphate | na | na | Heavy Load | 3/8 to 3/4 inch | na | ||
| LPH-4 | Backordered | 48 in stock | $5.47/each | EA | Steel, Zinc Phosphate | na | Plates | Steel, Zinc Phosphate | 1/2, 3/4 inch | na | Heavy Load | 3/4, 1 inch | 1/4 to 3/4 inch | 0.039568345323741004 lb | |
| LPH-5 | 25 in stock | 59 in stock | $6.48/each | EA | Steel, Zinc Phosphate | na | Plates | Steel, Zinc Phosphate | 1 1/4 inch | na | Heavy Load | 1 1/2 inch | na | ||
| LPH-6 | 20 in stock | 46 in stock | $9.39/each | EA | Steel, Zinc Phosphate | na | Plates | Steel, Zinc Phosphate | 1 1/2, 2 inch | na | Heavy Load | 2, 2 1/2 inch | 1 to 1 1/2 inch | ||
| LPT-1 | Backordered | 38 in stock | $0.59/each | EA | Steel, Zinc Phosphate | na | Plates | Steel, Zinc Phosphate | na | na | Light Duty/Twin Series | 1/4, 3/8 inch | na | 0.039568345323741004 lb | |
| LPT-2 | Backordered | Backordered | $0.61/each | EA | Steel, Zinc Phosphate | na | Plates | Steel, Zinc Phosphate | na | na | Light Duty/Twin Series | 1/2, 3/8 inch | na | 0.039568345323741004 lb |
