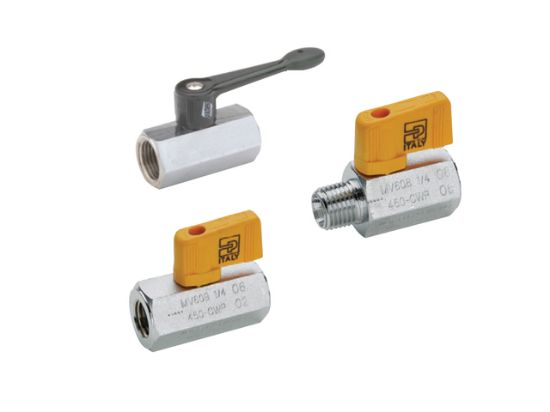

MV200-2 - Industrial Ball Valves - Chrome Plated Brass Ball Valves

Parker's chrome plated brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Backordered Estimated Lead Time: 15 days
Partner Available:	25 in stock

SKU MV200-2

$25.62/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	1/8
Maximum Working Pressure (psi)	200	Connection 1 Thread Size (inch)	1/8
Style	Female Pipe Ends	Handle	Polyamide Lever
Connection 1 Thread Style	Female Pipe	Connection 2 Thread Style	Female Pipe
Vacuum Rating (inch of Hg)	na	Maximum Working Pressure (Bar)	13.7
Specifications Met	N/A	Seal Material	PTFE
Minimum Operating Temperature	0 °F	Connection Type	NPT
Maximum Operating Temperature	93 °C	Function	2-Way
Connection Size	1/8 inch	Body Material	Chrome Plated Brass
Actuation Type	Manual	Seat Material	PTFE
Handle Type	Lever	Operation Type	On/Off
Orifice Size	n/a	Mounting Type	In-Line
Maximum Operating Pressure	13.7 bar	Configuration	In-line
Maximum Flow Rate	1.3 Cv	Lock Type	Non-Locking
Ball Material	Chrome Plated Brass	UOM	EA
Pkg Qty/UOM	10 EA	Pkg Qty	10
Thread 1	1/8 NPT	Material	Chrome Plated Brass
Flow Diameter	0.31 Inch	Free Flow CV Factor	1.3
Parker Group	Fluid Connector	Parker Division	Fluid Systems Connector (Brass Products)
Thread 1	1/8 NPT	Thread 1 Type	NPT
Configuration Type	Female to Female	Valve Type	Ball Valve
Series	MV200	Material	Chrome Plated Brass
Operating Temperature	0°F to +200°F	Max Pressure	14 Bar (200 PSI)
Flow Diameter	0.31 Inch	Free Flow CV Factor	1.3
Material - Ball	Chrome Plated Brass	Material - Seats/Seals	PTFE
Material - Handle	Plastic	Material Stem O-Ring	Fluorocarbon
