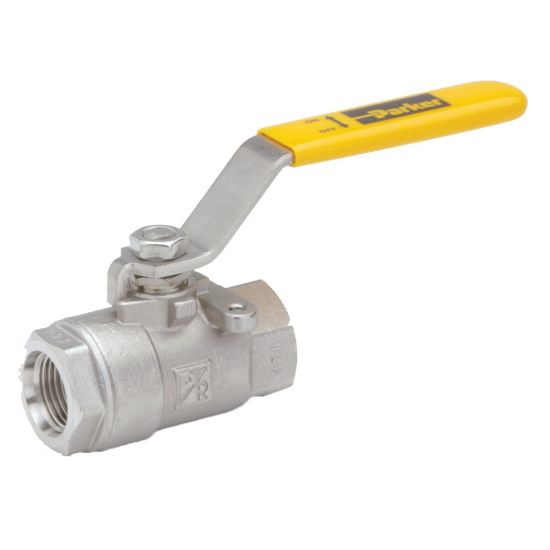

V502SS-12 - Industrial Ball Valves - Stainless Steel

Name: V502SS-12 - Industrial Ball Valves - Stainless Steel
SKU: V502SS-12
Price: 178.16 USD
Availability: LimitedAvailability

Parker's stainless steel ball valves meet the material requirements of NACE MR-01-75.

Availability:

2 Limited Stock

Kansas City, KS

Partner Available:

17 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU V502SS-12

$178.16/each

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 1 Thread Size (inch)	3/4
Connection 2 Thread Size (inch)	3/4	Locking Mechanism	Non-Locking
Style	Female Pipe Ends	Connection 1 Thread Style	Female Pipe
Connection 2 Thread Style	Female Pipe	Shape	Panel mount
Handle	Stainless Steel Lever	Vacuum Pressure Rating	28
Minimum Operating Temperature	0	Seal Material	PTFE
Connection Type	NPT	Maximum Operating Temperature	400
Connection Size	3/4	Function	2-Way
Actuation Type	Manual	Maximum Operating Pressure	2000
Handle Type	Lever	Maximum Flow Rate	35
Seat Material	Stainless Steel	Operation Type	n/a
Mounting Type	Panel	Ball Material	PTFE
Body Material	CF-8M Stainless Steel	Shape	Panel Mount
Orifice Size	.787	Configuration	Female NPT
Specifications Met	NACE MR-01-75
