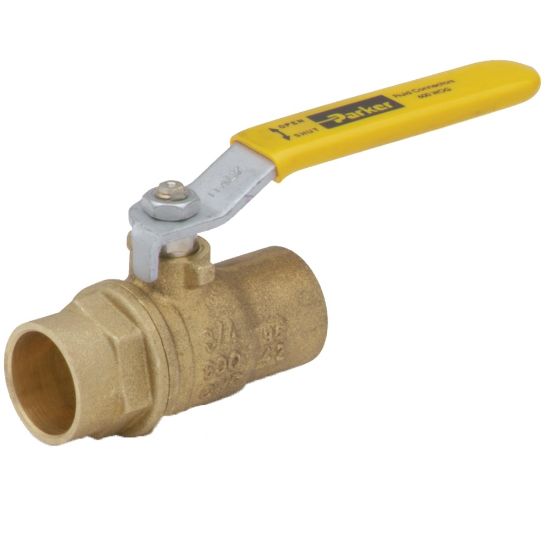

V509P-8 - Industrial Brass Ball Valves

Parker's brass ball valves are designed to provide years of service at an economical price and are available in various end configurations and options.

Availability:	Backordered Estimated Lead Time: 40 days
Partner Available:	22 in stock

SKU V509P-8

$24.76/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection 2 Thread Size (inch)	na
Connection 1 Thread Size (inch)	na	Maximum Working Pressure (psi)	600
Vented	No	Connection 2 Solder O.D. (inch)	1/2
Locking Mechanism	Non-Locking	Shape	In Line
Handle	Steel Lever	Style	Solder to Solder
Connection 1 Thread Style	Solder	Connection 2 Thread Style	Solder
Connection 1 Solder O.D. (inch)	1/2	Body Material	Brass
Minimum Operating Temperature	0	Seal Material	PTFE
Connection Size	1/2	Shape	In-Line
Actuation Type	Manual	Seat Material	PTFE
Maximum Operating Temperature	350	Maximum Flow Rate	26
Handle Type	Lever	Operation Type	n/a
Ball Material	Chrome Plated Brass	Function	2-Way, Normally Closed, Normally Open
Mounting Type	Panel, In-Line	Maximum Operating Pressure	41
Orifice Size	.55	Configuration	Solder Ends
Connection Type	NPT, Solder Ends
