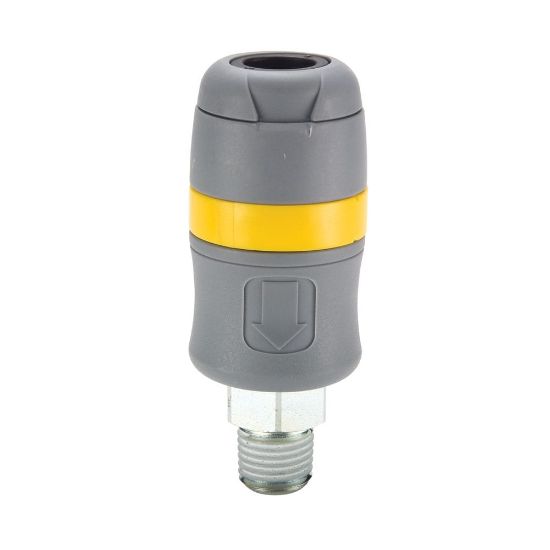

PBH-251-4MP - Industrial & European Interchange, Quick Connect Air Couplers - Tool-Mate Standard Series

Parker's non-marking, lightweight, pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	21 in stock

SKU PBH-251-4MP

$39.08/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Male, NPTF
Interface Option	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)	Body Size	1/4"
Thread Style	Male	Connection Thread Size	1/4"-18
Body Material	Polyamide	Coupling Half	Coupler
Lock Type	Polyacetate Locking Fingers	Plating Type	Galvanized Steel Port Ends
Maximum Operating Temperature	160 °F	Dimensional Weight	0.06291129496402877 lb
Sleeve Type	Push-to-Connect	Maximum Operating Pressure	300 psi
Media	Compressed Air	Valve Type	Tubular
Specifications Met	Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B)	Minimum Operating Temperature	0 °F
Seal Material	Nitrile
