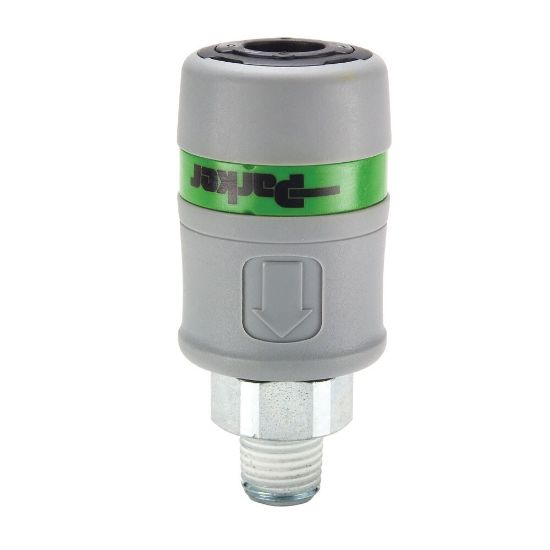

PER-251-4MP - Industrial & European Interchange, Quick Connect Air Couplers - Tool-Mate Standard Series

Parker's non-marking, lightweight, pneumatic, air quick connect couplers are ideal for use across a spectrum of applications where low pressure air lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	6 in stock

SKU PER-251-4MP

$38.79/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size	1/4"-18
Thread Style	Male	Body Size	1/4"
Connection Type	Male, NPTF	Interface Option	Connects with RF style nipples
Seal Material	Nitrile	Coupling Half	Coupler
Minimum Operating Temperature	0 °F	Maximum Operating Pressure	300 psi
Valve Type	Tubular	Maximum Operating Temperature	160 °F
Media	Compressed Air	Body Material	Polyamide
Lock Type	Polyacetate Locking Fingers	Sleeve Type	Push-to-Connect
Plating Type	Galvanized Steel Port Ends	Specifications Met	Connects with RF style nipples
