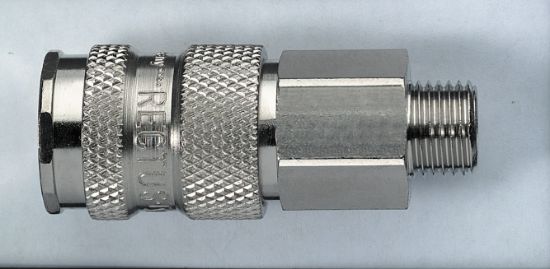

Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series - 23KAAN13MPN

Name: Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series - 23KAAN13MPN
SKU: 23KAAN13MPN

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:

Backordered

SKU 23KAAN13MPN

$27.11

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size	1/4"-18
Thread Style	Male	Connection Type	NPTF
Hose I.D.	n/a	Coupling Half	Coupler
Body Material	Brass, Nickel-plated	Body Size	1/4"
Minimum Operating Temperature	-4 °F	Division	Quick Coupling Division
Seal Material	Nitrile	Maximum Operating Temperature	212 °F
Maximum Operating Pressure	300 psi	Body Material	Brass, Nickel-plated
Lock Type	Locking balls	Media	Low Pressure Fluids
Sleeve Type	Push to Connect	Plating Type	Nickel Plated
Division	Quick Coupling Division	Application	High Flow
Specifications Met	ISO 6150B	Valve Type	Valved
Fitting Connection Type	Male Threads
