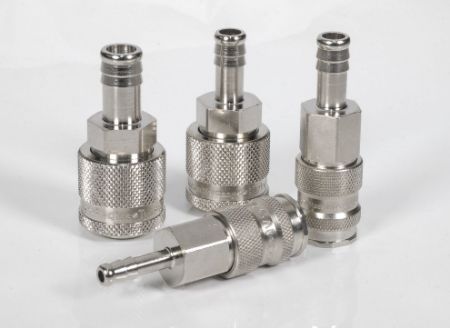

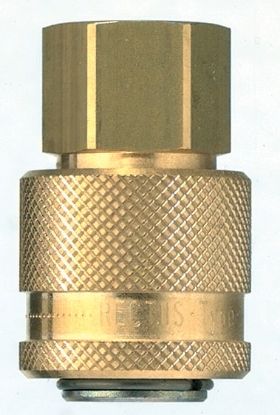

Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Rectus 21,23,30 Series Couplers (pneumatic, air) up to 300 psi connect with Industrial Interchange Nipples except for the 1/8" size that connects only with the 1/8” European Profile Nipples.
Parker's Rectus 21,23,30 Series Couplers are push to connect, single shut off couplers that mate with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards. These couplers have a slim profile and are corrosion resistant with stainless steel locking balls and valve spring. The sleeve guard protects against accidental disconnection. Heavy duty version has steel sleeve and valve body. Couplers are available in a range of sizes and materials suitable for pressure up to 300 psi.
Rectus 21,23,30 Series Nipples (pneumatic) connect with 1/8" Rectus 21,23,30 Series Couplers. These are small sized, single shut off pneumatic couplings. Nipples are 1/8" size only.
Technical Characteristics:
• Sizes: 1/8”, 3/8” and 1/4” Couplers; 1/8” Nipples
• Materials: Brass, Nickel Plated Brass, Nickel Plated Steel Couplers; Brass Nipples
• Port Ends: Female NPTF, Female NPSF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
• Seal Options: Nitrile
Markets:
• Industrial
• Construction
• Automotive service and repair
• Factory automation
Features/Benefits:
• Corrosion resistant valve with stainless steel locking balls and valve spring
• Heavy duty version has steel body and sleeve for durability
• Easy push to connect operation
• Slim profile is compact in confined spaces
• Sleeve guard protects against accidental disconnection
• Sizes 1/4" through 3/8" connect with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards for global interchangeability. :
• Unvalved nipple mates with valved coupler for a single shut off connection
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Water lines
• Grease guns
• Cleaning equipment
• Paint applicators
• Drop-down air lines
• Blow guns
• Packaging equipment
• Automation equipment
Read More...Parker's Rectus 21,23,30 Series Couplers are push to connect, single shut off couplers that mate with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards. These couplers have a slim profile and are corrosion resistant with stainless steel locking balls and valve spring. The sleeve guard protects against accidental disconnection. Heavy duty version has steel sleeve and valve body. Couplers are available in a range of sizes and materials suitable for pressure up to 300 psi.
Rectus 21,23,30 Series Nipples (pneumatic) connect with 1/8" Rectus 21,23,30 Series Couplers. These are small sized, single shut off pneumatic couplings. Nipples are 1/8" size only.
All other sizes of Rectus 21, 23, 30 Series Couplers connect with Industrial Interchange style Nipples.
Technical Characteristics:
• Sizes: 1/8”, 3/8” and 1/4” Couplers; 1/8” Nipples
• Materials: Brass, Nickel Plated Brass, Nickel Plated Steel Couplers; Brass Nipples
• Port Ends: Female NPTF, Female NPSF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
• Seal Options: Nitrile
Markets:
• Industrial
• Construction
• Automotive service and repair
• Factory automation
Features/Benefits:
• Corrosion resistant valve with stainless steel locking balls and valve spring
• Heavy duty version has steel body and sleeve for durability
• Easy push to connect operation
• Slim profile is compact in confined spaces
• Sleeve guard protects against accidental disconnection
• Sizes 1/4" through 3/8" connect with nipples conforming to A-A-59439 (MIL-C-4109F, ISO 6150-B) standards for global interchangeability. :
• Unvalved nipple mates with valved coupler for a single shut off connection
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Water lines
• Grease guns
• Cleaning equipment
• Paint applicators
• Drop-down air lines
• Blow guns
• Packaging equipment
• Automation equipment
| Action | SKU | Availability | Partner Available | Price | UOM | Body Material | Connection Thread Size | Thread Style | Connection Type | Hose I.D. | Body Size | Coupling Half | Minimum Operating Temperature | Body Material | Shape | Coupling Half | Specifications Met | Seal Material | Connection Type | Lock Type | Sleeve Material | Connection Size | Maximum Operating Pressure | Maximum Operating Temperature | Product Style | Media | Diameter | Function | Valve Type | Sleeve Type | Plating Type | Operation Type | Interchange Type | Region of Origin | Maximum Flow Rate | Compatible Fitting | Fitting Connection Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

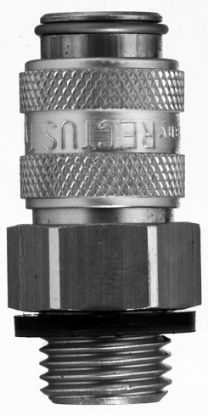

| 21KAAN10MPN | Backordered | 10 in stock | $14.57/each | EA | BRASS | 1/8"-27 | Male | NPTF | n/a | 1/8" | Coupler | -20 °C | Brass | Straight | Coupler | N/A | NBR | NPT | Locking balls | Brass | 1/8 inch | up to 507 psi | up to 100 °C | Quick-Connect | Low Pressure Fluids | 5.0 | Single Shut-Off | Standard Valve | Push to Connect | Nickel-plated | Sleeve | European Profile | Germany | 1800 | Series 21 Plug | ||
| 21KAAN13MPN | Backordered | Backordered | $43.78/each | EA | BRASS | 1/4"-18 | Male | NPTF | n/a | 1/8" | Coupler | -20 °C | Brass | Straight | Coupler | N/A | NBR | NPT | Locking balls | Brass | 1/4 inch | up to 507 psi | up to 100 °C | Quick-Connect | Compressed Air | 5.0 | Single Shut-Off | Standard Valve | Push to Connect | Nickel-plated | Sleeve | European Profile | Germany | 1800 | Series 21 Plug | ||

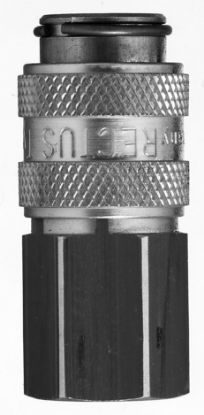

| 21KAIN10MPN | Backordered | 33 in stock | $14.75/each | EA | BRASS | 1/8"-27 | Female | NPTF | n/a | 1/8" | Coupler | -4 °F | Brass | Straight | Coupler | N/A | NBR | Female | Locking balls | Brass | 1/8 inch | up to 507 psi | up to 212 °F | Quick-Connect | Low Pressure Fluids | 5.0 | Single Shut-Off | Standard Valve | Push to Connect | Nickel-plated | Sleeve | European Profile | Germany | 1800 | Series 21 Plug | ||
| 21KAIN13MPN | Backordered | Backordered | $15.62/each | EA | BRASS | 1/4"-18 | Female | NPTF | n/a | 1/8" | Coupler | -20 °C | Brass | Straight | Coupler | N/A | NBR | Female | Locking balls | Brass | 1/4 inch | up to 507 psi | up to 100 °C | Quick-Connect | Compressed Air | 5.0 | Single Shut-Off | Standard Valve | Push to Connect | Nickel-plated | Sleeve | European Profile | Germany | 1800 | Series 21 Plug | ||

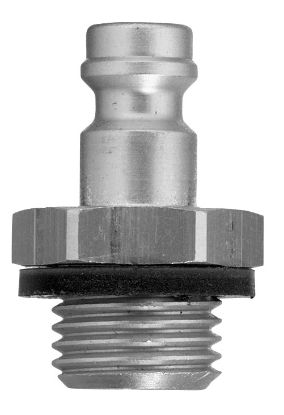

| 21SFAN10MXN | Backordered | 67 in stock | $21.82/each | EA | BRASS | 1/8"-27 | Male | n/a | 1/8" | Nipple | -40 °F | Brass | Straight | Plug | Without Seal | Male | Brass | 1/8 inch | Depends on the Choosen Associated Coupler | up to 464 °F | Quick-Connect | Compressed Air | 5.0 | Straight-Through | Without Valve | Nickel-plated | Sleeve | European Profile | Germany | Series 21 Coupler | |||||||
| 21SFAN13MXN | Backordered | Backordered | $19.57/each | EA | BRASS | 1/4"-18 | Male | n/a | 1/8" | Nipple | -40 °F | Brass | Straight | Plug | Without Seal | Male | Brass | 1/4 inch | Depends on the Choosen Associated Coupler | up to 464 °F | Quick-Connect | Compressed Air | 5.0 | Straight-Through | Without Valve | Nickel-plated | Sleeve | European Profile | Germany | Series 21 Coupler | |||||||

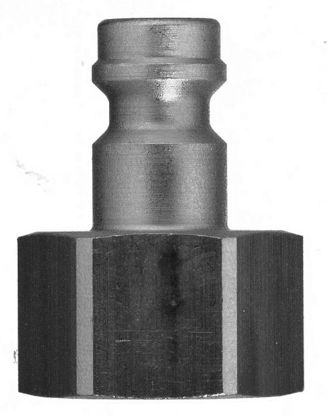

| 21SFIN10MXN | Backordered | 200 in stock | $20.58/each | EA | BRASS | 1/8"-27 | Female | n/a | 1/8" | Nipple | -40 °F | Brass | Straight | Plug | Without Seal | Female | Brass | 1/8 inch | Depends on the Choosen Associated Coupler | up to 464 °F | Quick-Connect | Compressed Air | 5.0 | Straight-Through | Without Valve | Nickel-plated | Sleeve | European Profile | Germany | Series 21 Coupler | |||||||
| 21SFIN13MXN | Backordered | 20 in stock | $6.74/each | EA | BRASS | 1/4"-18 | Female | n/a | 1/8" | Nipple | -40 °C | Brass | Straight | Plug | Without Seal | Female | Brass | 1/4 inch | Depends on the Choosen Associated Coupler | up to 240 °C | Quick-Connect | Compressed Air | 5.0 | Straight-Through | Without Valve | Nickel-plated | Sleeve | European Profile | Germany | Series 21 Coupler | |||||||

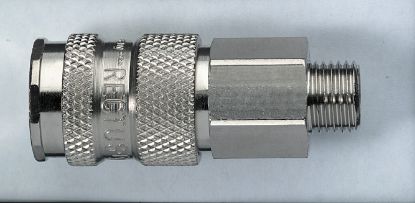

| 23KAAN13MPN | Backordered | 48 in stock | $27.11/each | EA | Brass, Nickel-plated | 1/4"-18 | Male | NPTF | n/a | 1/4" | Coupler | -4 °F | Brass, Nickel-plated | ISO 6150B | Nitrile | Locking balls | 300 psi | 212 °F | Low Pressure Fluids | Valved | Push to Connect | Nickel Plated | Male Threads | ||||||||||||||

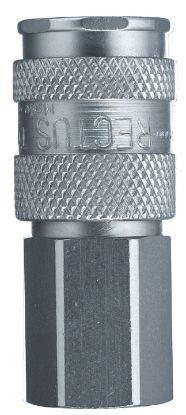

| 23KAIN13MPN | Backordered | 148 in stock | $26.34/each | EA | Brass, Nickel-plated | 1/4"-18 | Female | NPSF | n/a | 1/4" | Coupler | -4 °F | Brass, Nickel-plated | ISO 6150B | Nitrile | Locking balls | 300 psi | 212 °F | Low Pressure Fluids | Valved | Push to Connect | Nickel Plated | Female Threads | ||||||||||||||
| 23KAIN17MPN | Backordered | 10 in stock | $94.83/each | EA | Brass, Nickel-plated | 3/8"-18 | Female | NPSF | n/a | 1/4" | Coupler | -4 °F | Brass, Nickel-plated | ISO 6150B | Nitrile | Locking balls | 300 psi | 212 °F | Low Pressure Fluids | Valved | Push to Connect | Nickel Plated | Female Threads | ||||||||||||||
| 23KATF06MPN | Backordered | 2 Limited Stock | $34.82/each | EA | Brass, Nickel-plated | N/A | n/a | Hose barb | 1/4" | 1/4" | Coupler | -4 °F | Brass, Nickel-plated | ISO 6150B | Nitrile | Locking balls | 300 psi | 212 °F | Low Pressure Fluids | Valved | Push to Connect | Nickel Plated | Hose Barb | ||||||||||||||
| 23KATF10MPN | Backordered | Backordered | $28.00/each | EA | Brass, Nickel-plated | N/A | n/a | Hose barb | 3/8" | 1/4" | Coupler | -4 °F | Brass, Nickel-plated | ISO 6150B | Nitrile | Locking balls | 300 psi | 212 °F | Compressed Air | Valved | Push to Connect | Nickel Plated | Hose Barb | ||||||||||||||
| 23KATP10MPN | 1 Limited Stock | Backordered | $101.75/each | EA | Brass, Nickel-plated | N/A | n/a | Push-Lok hose barb | 3/8" | 1/4" | Coupler | -4 °F | Brass, Nickel-plated | ISO 6150B | Nitrile | Locking balls | 300 psi | 212 °F | Low Pressure Fluids | Valved | Push to Connect | Nickel Plated | Push-Lok Hose Barb | ||||||||||||||
| 30KAAN13SPN | Backordered | 14 in stock | $79.57/each | EA | Steel, Nickel-plated | 1/4"-18 | Male | NPTF | n/a | 3/8" | Coupler | -4 °F | Steel, Nickel-plated | ISO 6150B | Nitrile | Locking balls | 300 psi | 212 °F | Low Pressure Fluids | Valved | Push to Connect | Nickel Plated | Male Threads | ||||||||||||||
| 30KAAN17SPN | Backordered | 23 in stock | $52.66/each | EA | Steel, Nickel-plated | 3/8"-18 | Male | NPTF | n/a | 3/8" | Coupler | -4 °F | Steel, Nickel-plated | ISO 6150B | Nitrile | Locking balls | 300 psi | 212 °F | Compressed Air | Valved | Push to Connect | Nickel Plated | Male Threads | ||||||||||||||
| 30KAAN21SPN | Backordered | Backordered | $56.56/each | EA | Steel, Nickel-plated | 1/2"-14 | Male | NPTF | n/a | 3/8" | Coupler | -4 °F | Steel, Nickel-plated | ISO 6150B | Nitrile | Locking balls | 300 psi | 212 °F | Compressed Air | Valved | Push to Connect | Nickel Plated | Male Threads | ||||||||||||||
| 30KATF10SPN | Backordered | Backordered | $61.47/each | EA | Steel, Nickel-plated | N/A | n/a | Hose barb | 3/8" | 3/8" | Coupler | -4 °F | Steel, Nickel-plated | ISO 6150B | Nitrile | Locking balls | 300 psi | 212 °F | Compressed Air | Valved | Push to Connect | Nickel Plated | Hose Barb | ||||||||||||||
| 30KATF13SPN | Backordered | Backordered | $55.53/each | EA | Steel, Nickel-plated | N/A | n/a | Hose barb | 1/2" | 3/8" | Coupler | -4 °F | Steel, Nickel-plated | ISO 6150B | Nitrile | Locking balls | 300 psi | 212 °F | Compressed Air | Valved | Push to Connect | Nickel Plated | Hose Barb | ||||||||||||||
| 30KATP10SPN | 20 in stock | 3 in stock | $155.29/each | EA | Steel, Nickel-plated | N/A | n/a | Push-Lok hose barb | 3/8" | 3/8" | Coupler | -4 °F | Steel, Nickel-plated | ISO 6150B | Nitrile | Locking balls | 300 psi | 212 °F | Compressed Air | Valved | Push to Connect | Nickel Plated | Push-Lok Hose Barb |
