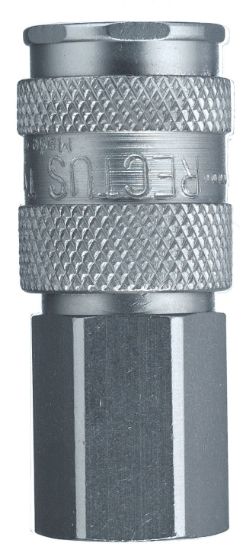

Picture of Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series - 23KAIN13MPN

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series - 23KAIN13MPN

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU 23KAIN13MPN
$26.34
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection Thread Size1/4"-18
Thread StyleFemaleHose I.D.n/a
Coupling HalfCouplerBody MaterialBrass, Nickel-plated
Body Size1/4"Connection TypeNPSF
Minimum Operating Temperature-4 °FDivisionQuick Coupling Division
Seal MaterialNitrileMaximum Operating Temperature212 °F
Maximum Operating Pressure300 psiApplicationAir
Body MaterialBrass, Nickel-platedLock TypeLocking balls
MediaLow Pressure FluidsSleeve TypePush to Connect
Plating TypeNickel PlatedDivisionQuick Coupling Division
Specifications MetISO 6150BValve TypeValved
Fitting Connection TypeFemale Threads
