*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

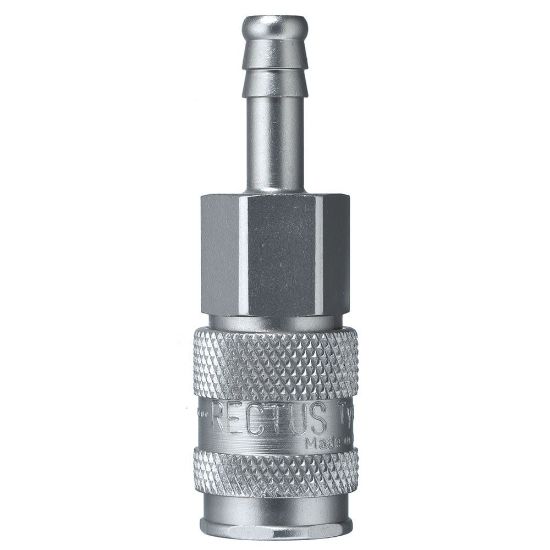

23KATF06MPN - Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	2 Limited Stock

SKU 23KATF06MPN

$34.82/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Type	Hose barb
Coupling Half	Coupler	Connection Thread Size	N/A
Body Material	Brass, Nickel-plated	Body Size	1/4"
Hose I.D.	1/4"	Thread Style	n/a
Minimum Operating Temperature	-4 °F	Seal Material	Nitrile
Maximum Operating Temperature	212 °F	Maximum Operating Pressure	300 psi
Body Material	Brass, Nickel-plated	Lock Type	Locking balls
Media	Low Pressure Fluids	Sleeve Type	Push to Connect
Plating Type	Nickel Plated	Specifications Met	ISO 6150B
Valve Type	Valved	Fitting Connection Type	Hose Barb

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
