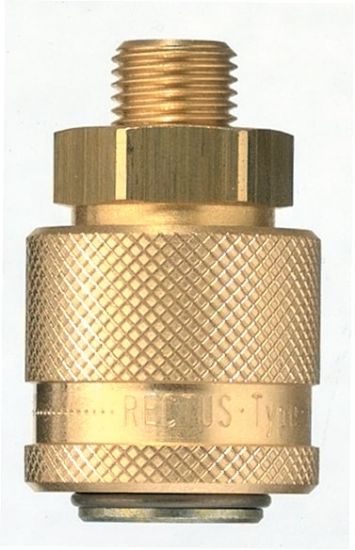

30KAAN13SPN - Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.

Availability:	Backordered Estimated Lead Time: 71 days
Partner Available:	14 in stock

SKU 30KAAN13SPN

$79.57/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size	1/4"-18
Thread Style	Male	Connection Type	NPTF
Hose I.D.	n/a	Coupling Half	Coupler
Body Material	Steel, Nickel-plated	Body Size	3/8"
Minimum Operating Temperature	-4 °F	Seal Material	Nitrile
Maximum Operating Temperature	212 °F	Maximum Operating Pressure	300 psi
Lock Type	Locking balls	Media	Low Pressure Fluids
Sleeve Type	Push to Connect	Plating Type	Nickel Plated
Specifications Met	ISO 6150B	Valve Type	Valved
Fitting Connection Type	Male Threads	Body Material	Steel, Nickel-plated

Product resources

Compliance, Certifications & Safety

Safety Guide: Quick Couplings and Related Accessories (PDF)

Literature and Reference Materials
