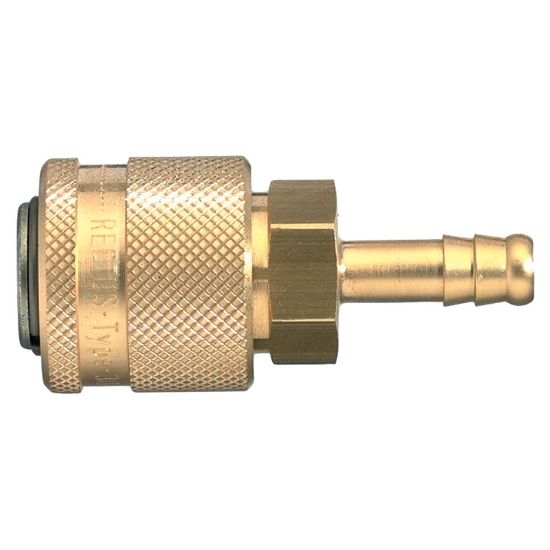

Picture of Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series - 30KATF13SPN

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Industrial Interchange, High Flow, Quick Connect Air Couplings - Rectus 21, 23, 30 Series - 30KATF13SPN

Parker's high flow, Industrial Interchange pneumatic, quick connect air couplers and nipples are ideal for use across a spectrum of applications where low pressure air or fluid lines require fast and easy connection and disconnection.
Availability:
Backordered
SKU 30KATF13SPN
$55.53
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAConnection TypeHose barb
Coupling HalfCouplerConnection Thread SizeN/A
Thread Stylen/aBody MaterialSteel, Nickel-plated
Hose I.D.1/2"Body Size3/8"
Minimum Operating Temperature-4 °FDivisionQuick Coupling Division
Seal MaterialNitrileMaximum Operating Temperature212 °F
Maximum Operating Pressure300 psiLock TypeLocking balls
MediaCompressed AirSleeve TypePush to Connect
Plating TypeNickel PlatedDivisionQuick Coupling Division
ApplicationHigh FlowSpecifications MetISO 6150B
Valve TypeValvedFitting Connection TypeHose Barb
Body MaterialSteel, Nickel-plated
