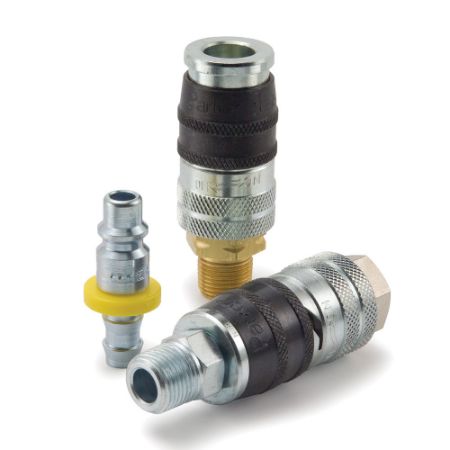

Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
E-z-mate Series Quick Connect Air Couplers, up to 300 psi, connect with Industrial Interchange Nipples. Parker's E-z-mate Series are pressure venting style, push to connect couplers that turn the air flow on and off with a simple twist. These pressure venting style couplers allow disconnection at zero pressure to avoid dangerous hose whip. E-z-mate Series meets ISO 4414 requirements for a controlled pressure release system.
Technical Characteristics:
• Sizes: 1/4”, 3/8", 1/2", 3/4”
• Materials: Steel
• Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
• Seal Options: Nitrile
Markets:
• Industrial
• Construction
• Automotive service and repair
• Factory automation
Features/Benefits:
• Twist to open air flow then twist to close air flow and vent trapped pressure. Relieves air pressure prior to disconnection, eliminating the risk of hose whip
• Meets ISO 4414 requirements for a controlled pressure release system
• Easy push to connect operation
• Self locking valve sleeve guards against accidental disconnection
• Connects with Parker's Industrial Interchange Nipples and others manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B)
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Drop-down air lines
• Blow guns
Read More...Technical Characteristics:
• Sizes: 1/4”, 3/8", 1/2", 3/4”
• Materials: Steel
• Port Ends: Female NPTF, Male NPTF, Standard Hose Barb, Push-Lok Hose Barb
• Seal Options: Nitrile
Markets:
• Industrial
• Construction
• Automotive service and repair
• Factory automation
Features/Benefits:
• Twist to open air flow then twist to close air flow and vent trapped pressure. Relieves air pressure prior to disconnection, eliminating the risk of hose whip
• Meets ISO 4414 requirements for a controlled pressure release system
• Easy push to connect operation
• Self locking valve sleeve guards against accidental disconnection
• Connects with Parker's Industrial Interchange Nipples and others manufactured to A-A-59439 (MIL-C-4109F, ISO 6150-B)
Applications:
• Air compressors
• Pneumatic air tools and hoses
• Drop-down air lines
• Blow guns
| Action | SKU | Availability | Partner Available | Price | UOM | Body Size (inch) | Connection Thread Size (inch) | Thread Style | Connection Type | Connection Hose I.D. (inch) | Minimum Operating Temperature | Body Material | Dimensional Weight | Seal Material | Coupling Half | Maximum Operating Temperature | Maximum Operating Pressure | Valve Type | Lock Type | Media | Sleeve Type | Plating Type | Special Option | Specifications Met |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

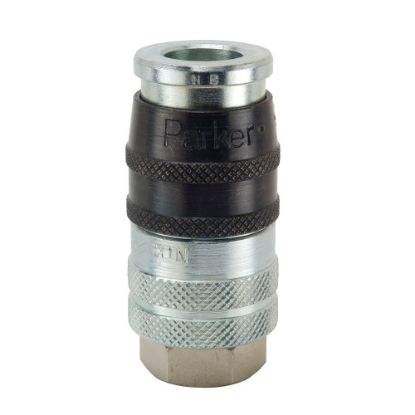

| EZ-251-4FP | 31 in stock | 282 in stock | $46.53/each | EA | 1/4 | 1/4 - 18 | Female | NPTF | na | -40 °F | Steel | 0.062320143884892085 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) | |
| EZ-251-4HB | 2 Limited Stock | 19 in stock | $78.88/each | EA | 1/4 | na | na | Hose barb | 1/4 | -40 °F | Steel | 0.062320143884892085 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | ISO 4414 controlled pressure release | |

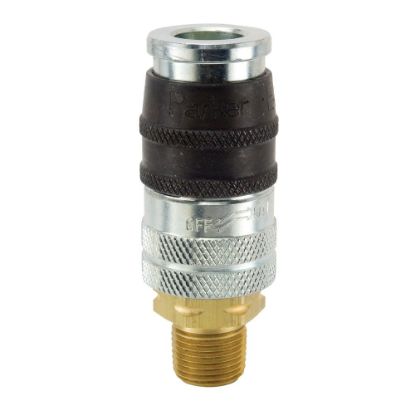

| EZ-251-4MP | 100 in stock | 329 in stock | $55.14/each | EA | 1/4 | 1/4 - 18 | Male | NPTF | na | -40 °F | Steel | 0.062320143884892085 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | ISO 4414 controlled pressure release | |
| EZ-251-4PL | Backordered | 89 in stock | $79.06/each | EA | 1/4 | na | na | Push-Lok hose barb | 1/4 | -40 °F | Steel | 0.062320143884892085 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | ISO 4414 controlled pressure release | |
| EZ-251-6FP | 3 in stock | 49 in stock | $50.56/each | EA | 1/4 | 3/8 - 18 | Female | NPTF | na | -40 °F | Steel | 0.062320143884892085 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) | |
| EZ-251-6HB | 8 in stock | Backordered | $69.29/each | EA | 1/4 | na | na | Hose barb | 3/8 | -40 °F | Steel | 0.062320143884892085 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | ISO 4414 controlled pressure release | |
| EZ-251-6MP | Backordered | 20 in stock | $66.86/each | EA | 1/4 | 3/8 - 18 | Male | NPTF | na | -40 °F | Steel | 0.062320143884892085 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | ISO 4414 controlled pressure release | |
| EZ-251-6PL | Backordered | 42 in stock | $75.64/each | EA | 1/4 | na | na | Push-Lok hose barb | 3/8 | -40 °F | Steel | 0.062320143884892085 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | ISO 4414 controlled pressure release | |
| EZ-371-6FP | 48 in stock | 270 in stock | $56.46/each | EA | 3/8 | 3/8 - 18 | Female | NPTF | na | -40 °F | Steel | 0.05341726618705036 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) | |
| EZ-371-6HB | 4 in stock | 37 in stock | $73.37/each | EA | 3/8 | na | na | Hose barb | 3/8 | -40 °F | Steel | 0.12464028776978417 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | ISO 4414 controlled pressure release | |
| EZ-371-6MP | Backordered | 94 in stock | $66.58/each | EA | 3/8 | 3/8 - 18 | Male | NPTF | na | -40 °F | Steel | 0.12464028776978417 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | ISO 4414 controlled pressure release | |
| EZ-371-6PL | 39 in stock | 57 in stock | $68.57/each | EA | 3/8 | na | na | Push-Lok hose barb | 3/8 | -40 °F | Steel | 0.12464028776978417 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | ISO 4414 controlled pressure release | |
| EZ-371-8FP | Backordered | 90 in stock | $62.28/each | EA | 3/8 | 1/2 - 14 | Female | NPTF | na | -40 °F | Steel | 0.12464028776978417 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) | |
| EZ-501-12FP | 19 in stock | 2 Limited Stock | $76.85/each | EA | 1/2 | 3/4 - 14 | Female | NPTF | na | -40 °F | Steel | 0.12464028776978417 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) | |
| EZ-501-8FP | 23 in stock | 282 in stock | $61.25/each | EA | 1/2 | 1/2 - 14 | Female | NPTF | na | -40 °F | Steel | 0.12464028776978417 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) | |
| EZ-501-8HB | 4 in stock | 12 in stock | $77.28/each | EA | 1/2 | na | na | Hose barb | 1/2 | -40 °F | Steel | 0.12464028776978417 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | ISO 4414 controlled pressure release | |
| EZ-501-8MP | 30 in stock | 229 in stock | $73.40/each | EA | 1/2 | 1/2 - 14 | Male | NPTF | na | -40 °F | Steel | 0.12464028776978417 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | ISO 4414 controlled pressure release | |
| EZ-501-8PL | 5 in stock | 28 in stock | $76.16/each | EA | 1/2 | na | na | Push-Lok hose barb | 1/2 | -40 °F | Steel | 0.12464028776978417 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | ISO 4414 controlled pressure release | |
| EZ-751-12FP | 4 in stock | 49 in stock | $104.43/each | EA | 3/4 | 3/4 - 14 | Female | NPTF | na | -40 °F | Steel | 0.12464028776978417 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | Connects with pneumatic Industrial Interchange nipples A-A-59439 (MIL-C-4109F, ISO 6150-B) | |
| EZ-751-12MP | Backordered | 8 in stock | $131.42/each | EA | 3/4 | 3/4 - 14 | Male | NPTF | na | -40 °F | Steel | 0.12464028776978417 lb | Nitrile | Coupler | 250 °F | 300 psi | Tubular | Locking balls | Compressed Air | Push to Connect | Zinc with clear trivalent chromate on steel body | Exhaust - venting | ISO 4414 controlled pressure release |
