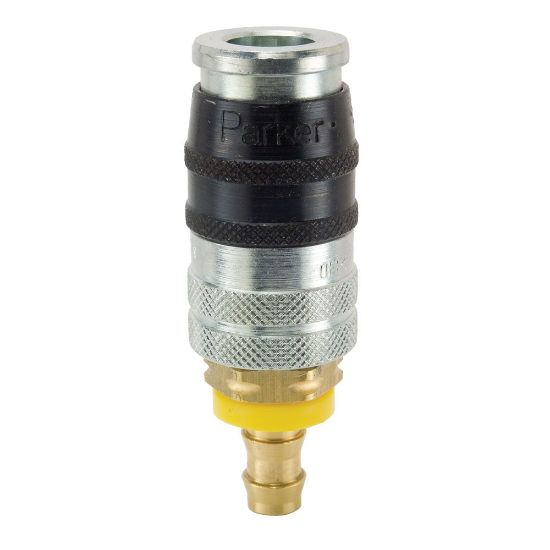

Picture of Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series - EZ-251-4PL

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Industrial Interchange, Safety Quick Connect Air Couplers, ISO 4414 - E-z-mate Series - EZ-251-4PL

Parker's pressure venting, Industrial Interchange pneumatic, quick connect air couplers are ideal for use in applications where low pressure air lines require fast and easy connection and disconnection with a controlled pressure release system.
Availability:
Backordered
SKU EZ-251-4PL
$79.06
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody Size (inch)1/4
Connection Thread Size (inch)naConnection TypePush-Lok hose barb
Thread StylenaConnection Hose I.D. (inch)1/4
Minimum Operating Temperature-40 °FBody MaterialSteel
Dimensional Weight0.062320143884892085 lbDivisionQuick Coupling Division
Seal MaterialNitrileCoupling HalfCoupler
Maximum Operating Temperature250 °FMaximum Operating Pressure300 psi
ApplicationAirValve TypeTubular
Lock TypeLocking ballsMediaCompressed Air
Sleeve TypePush to ConnectPlating TypeZinc with clear trivalent chromate on steel body
Special OptionExhaust - ventingSpecifications MetISO 4414 controlled pressure release
