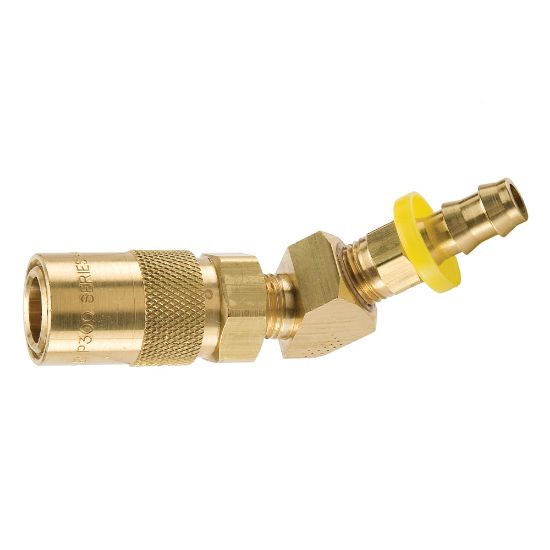

PC224-BP - Injection Molding, Coolant Quick Couplings - Moldmate Series

Parker's mold coolant quick couplers and nipples are specifically designed to provide a quick and easy way to connect and disconnect low pressure fluid lines during mold changes.

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	30 in stock

SKU PC224-BP

$20.67/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Valve Style	Unvalved
Body Material	BRASS	Connection Thread Size (inch)	na
Body Size (inch)	1/4	Connection Hose I.D. (inch)	1/4
Flow Rate	3	Coupling Half	Female Coupler
Connection Type	Push-Lok hose barb, 45 degree	Plating Type	na
Maximum Operating Pressure	200 psi	Hex Size	0.63 inch
Dimensional Weight	0.02670863309352518 lb	Minimum Operating Temperature	-20 °F
Seal Material	Silicone	Maximum Operating Temperature	400 °F
