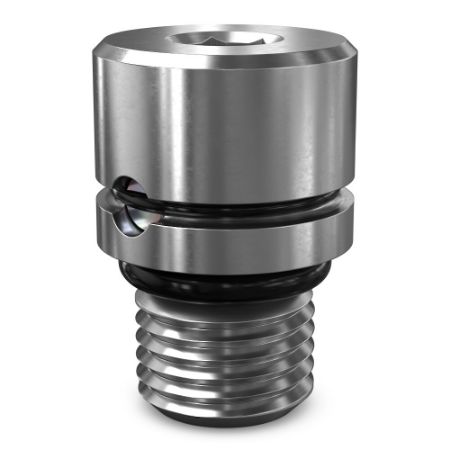

Insert Check Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s ball and poppet style insert check valves save space and reduce complexity with their high flow and low leak designs. These valves have the capability to handle flow up to 500 lpm (132 gpm) and pressures at 420 bar (6,000 psi), with a variety of crack pressure settings available as standard options. The simple construction and tolerance for contamination makes these insert check valves a cost effective solution for hydraulic systems across many markets and applications.

Markets:
• Construction Equipment
• Material Handling Equipment
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Mobile

Features/Benefits:
• For inserting inside manifold blocks
• Minimal leakage – less than 3 drops/min
• High flow capacity
• Simple construction – extremely cost effective
• Wide range of crack pressures available
• High tolerance for contamination
• All external parts zinc plated

Applications:
• High flow applications
• Load holding
• Markets where cleanliness is an issue

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Seal Material	Maximum Inlet Pressure Rating	Cracking Pressure	Flow Rate	Seal Material	Connection Size	Connection Type	Body Material	Maximum Operating Pressure	For Fluid Type	Filter Efficiency Rating	Maximum Kinematic Viscosity	Minimum Operating Temperature	Maximum Operating Temperature	Weight	Actuation Type	Operation Type	Valve Material	Maximum Inlet Pressure Rating	Cracking Pressure	Mounting Type	Flow Direction	Configuration	Flow Rate	Maximum Flow Rate	Function	Leak Rate	Cavity Size
D1A060-0.2N	Backordered	Backordered	$73.79/each	EA	Nitrile	6000 PSI, 420 BAR	3 PSI, 0.2 BAR	38 GAL/MIN, 145 L/MIN	Nitrile	n/a	n/a	n/a	6000 psi	Mineral-based Hydraulic Fluids	ISO 4406 18/16/13	45-2000 SSU (6 to 420 cSt)	-30 °F	121 °C	0.19 lb	Pressure Sensing	Automatic	Hardened Steel (all operating parts)	420 bar	3 psi	Inside Manifolds	2-1 Checked	Insert	145 L/min	38 Gal/min	Check	3 drops/min	2U
D1A060-0.2V	Backordered	Backordered	$122.67/each	EA	Fluorocarbon	6000 PSI, 420 BAR	3 PSI, 0.2 BAR	38 GAL/MIN, 145 L/MIN	Fluorocarbon	n/a	n/a	n/a	6000 psi	Mineral-based Hydraulic Fluids	ISO 4406 18/16/13	45-2000 SSU (6 to 420 cSt)	-26 °C	204 °C	0.85 kg	Pressure Sensing	Automatic	Hardened Steel (all operating parts)	6000 psi	3 psi	Inside Manifolds	2-1 Checked	Insert	38 Gal/min	145 L/min	Check	3 drops/min	2U
D1A060-1.0N	Backordered	Backordered	$97.53/each	EA	Nitrile	6000 PSI, 420 BAR	15 PSI, 1 BAR	38 GAL/MIN, 145 L/MIN	Nitrile	n/a	n/a	n/a	6000 psi	Mineral-based Hydraulic Fluids	SAE Class 4	45-2000 SSU (6 to 420 cSt)	-34 °C	250 °F	0.85 kg	Pressure Sensing	Automatic	Hardened Steel (all operating parts)	6000 psi	15 psi	Inside Manifolds	2-1 Checked	Insert	38 Gal/min	145 L/min	Check	n/a	2U
D1A060-2.0N	Backordered	Backordered	$97.53/each	EA	Nitrile	6000 PSI, 420 BAR	30 PSI, 2 BAR	38 GAL/MIN, 145 L/MIN	Nitrile	n/a	n/a	n/a	420 bar	Mineral-based Hydraulic Fluids	ISO 4406 18/16/13	45-2000 SSU (6 to 420 cSt)	-30 °F	121 °C	0.19 lb	Pressure Sensing	Automatic	Steel (all parts)	6000 psi	30 psi	Inside Manifolds	1-2 Free Flow	Insert	145 L/min	38 Gal/min	Check	n/a	2U
D1A060-3.0N	Backordered	Backordered	$97.53/each	EA	Nitrile	6000 PSI, 420 BAR	45 PSI, 3 BAR	38 GAL/MIN, 145 L/MIN	Nitrile	n/a	n/a	n/a	420 bar	Synthetic Hydraulic Fluids	ISO 4406 18/16/13	45-2000 SSU (6 to 420 cSt)	-30 °F	250 °F	0.19 lb	Pressure Sensing	Automatic	Steel (all parts)	420 bar	3 bar	Inside Manifolds	1-2 Free Flow	Insert	145 L/min	38 Gal/min	Check	n/a	2U
D1B125-0.0N	Backordered	Backordered	$147.11/each	EA	Nitrile	6000 PSI, 420 BAR	0 PSI, 0 BAR	132 GAL/MIN, 500 L/MIN	Nitrile	n/a	n/a	n/a	6000 psi	Synthetic Hydraulic Fluids	ISO 4406 18/16/13	45-2000 SSU (6 to 420 cSt)	-34 °C	121 °C	0.6 kg	Pressure Sensing	Automatic	Steel (all parts)	6000 psi	0 psi	Inside Manifolds	2-1 Checked	Insert	132 Gal/min	500 L/min	Check	3 drops/min	2C
D1B125-0.1N	Backordered	Backordered	$147.11/each	EA	Nitrile	6000 PSI, 420 BAR	1.5 PSI, 0.1 BAR	132 GAL/MIN, 500 L/MIN	Nitrile	n/a	n/a	n/a	420 bar	Mineral-based Hydraulic Fluids	ISO 4406 18/16/13	45-2000 SSU (6 to 420 cSt)	-30 °F	250 °F	0.6 kg	Pressure Sensing	Automatic	Steel (all parts)	420 bar	1.5 psi	Inside Manifolds	2-1 Checked	Insert	132 Gal/min	500 L/min	Check	n/a	2C
D1B125-0.1V	Backordered	Backordered	POR	EA	Fluorocarbon	6000 PSI, 420 BAR	1.5 PSI, 0.1 BAR	132 GAL/MIN, 500 L/MIN	Fluorocarbon	n/a	n/a	n/a	420 bar	Mineral-based Hydraulic Fluids	SAE Class 4	45-2000 SSU (6 to 420 cSt)	-26 °C	204 °C	0.13 lb	Pressure Sensing	Automatic	Hardened Steel (all operating parts)	6000 psi	0.1 bar	Inside Manifolds	1-2 Free Flow	Insert	132 Gal/min	132 Gal/min	Check	3 drops/min	2C
D1B125-0.2N	43 in stock	Backordered	$111.39/each	EA	Nitrile	6000 PSI, 420 BAR	3 PSI, 0.2 BAR	132 GAL/MIN, 500 L/MIN	Nitrile	n/a	n/a	n/a	6000 psi	Mineral-based Hydraulic Fluids	SAE Class 4	45-2000 SSU (6 to 420 cSt)	-34 °C	250 °F	0.6 kg	Pressure Sensing	Automatic	Hardened Steel (all operating parts)	420 bar	0.2 bar	Inside Manifolds	2-1 Checked	Insert	132 Gal/min	132 Gal/min	Check	3 drops/min	2C
D1B125-1.0N	Backordered	Backordered	$111.39/each	EA	Nitrile	6000 PSI, 420 BAR	15 PSI, 1 BAR	132 GAL/MIN, 500 L/MIN	Nitrile	n/a	n/a	n/a	6000 psi	Mineral-based Hydraulic Fluids	SAE Class 4	45-2000 SSU (6 to 420 cSt)	-34 °C	121 °C	0.6 kg	Pressure Sensing	Automatic	Steel (all parts)	420 bar	15 psi	Inside Manifolds	2-1 Checked	Insert	132 Gal/min	132 Gal/min	Check	n/a	2C
D1B125-2.0N	Backordered	Backordered	$147.11/each	EA	Nitrile	6000 PSI, 420 BAR	30 PSI, 2 BAR	132 GAL/MIN, 500 L/MIN	Nitrile	n/a	n/a	n/a	420 bar	Mineral-based Hydraulic Fluids	SAE Class 4	45-2000 SSU (6 to 420 cSt)	-30 °F	250 °F	0.13 lb	Pressure Sensing	Automatic	Steel (all parts)	6000 psi	2 bar	Inside Manifolds	1-2 Free Flow	Insert	500 L/min	500 L/min	Check	n/a	2C
D1B125-3.0N	Backordered	Backordered	POR	EA	Nitrile	6000 PSI, 420 BAR	45 PSI, 3 BAR	132 GAL/MIN, 500 L/MIN	Nitrile	n/a	n/a	n/a	6000 psi	Mineral-based Hydraulic Fluids	SAE Class 4	45-2000 SSU (6 to 420 cSt)	-34 °C	121 °C	0.6 kg	Pressure Sensing	Automatic	Steel	420 bar	45 psi	Inside Manifolds	1-2 Free Flow	Insert	132 Gal/min	500 L/min	Check	n/a	2C
D1B125-5.0N	Backordered	20 in stock	$111.39/each	EA	Nitrile	6000 PSI, 420 BAR	72 PSI, 5 BAR	132 GAL/MIN, 500 L/MIN	Nitrile	n/a	n/a	n/a	6000 psi	Synthetic Hydraulic Fluids	SAE Class 4	45-2000 SSU (6 to 420 cSt)	-34 °C	121 °C	0.6 kg	Pressure Sensing	Automatic	Steel	6000 psi	72 psi	Inside Manifolds	2-1 Checked	Insert	500 L/min	132 Gal/min	Check	n/a	2C
