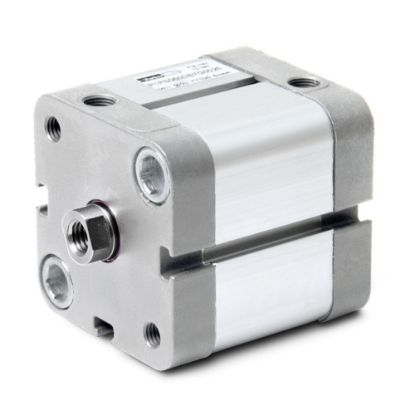

The P1P Series is a complete range of ISO 21287 compact cylinders. Cylinder barrel is anodized aluminum. Chrome plated carbon steel piston rod is standard. Elastic cushioning absorbs residual energy facilitating in smooth, low noise operation enabling high speeds and short cycle times. Proven seal technology and quality materials throughout offer performance, reliability, and long service life.

Available as Single rod double acting and double acting with non-rotating piston rod (guided) in bore sizes Ø20 to Ø100mm. Double acting with through rod bores Ø20 to Ø63mm. Single acting spring return (Bores Ø20 - Ø63mm) and single acting spring advance (Bores Ø20 - Ø63mm). With standard temperature -20°C to +80°C, high temperature -10°C to +120°C and low temperature -40°C to +80°C to suit a wide range of environmental applications in processing, packaging, and handling.

Compact axial dimensions make the P1P ISO 21287 cylinder up to 50% shorter than an equivalent ISO 15552 cylinder of the same stroke length. Offering many opportunities for mechanical installation there are holes through the cylinder body that can be used with through bolts or female threads on both front and rear plates. A wide range of ISO 15552-cylinder mountings are available for use with P1P cylinders bore 20-100 mm.

Markets

• Factory Automation

• Packaging Machinery

• Printing and Marking Equipment

• Food and Beverage

• Miscellaneous Processing

• Entertainment Automation

Features/Benefits

• ISO 21287 Conformity for universal installation

• Proven high quality materials, surfaces, and seal technology for long service life

• Anodized aluminum and stainless-steel materials allow for use in corrosive environments.

• Compact design to aid installation

• Efficient elastic cushioning absorbing residual energy facilitates high speeds and short cycle times.

• Elastic material on the piston end faces giving a smooth, low noise operation

• Integral sensor grooves remove the need for optional brackets and offers mechanical protection of the sensors.  Magnetic piston is standard. Sensor options   include reed, NPN, PNP and CPS: continuous positioner sensors.

• Pre-lubricated: further lubrication is normally not required. If additional lubrication is introduced, it must be continued.

Applications

• Moving and positioning of process parts

• Material feeding systems

• Directional control of conveyor paths

• Clamping operations
