*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

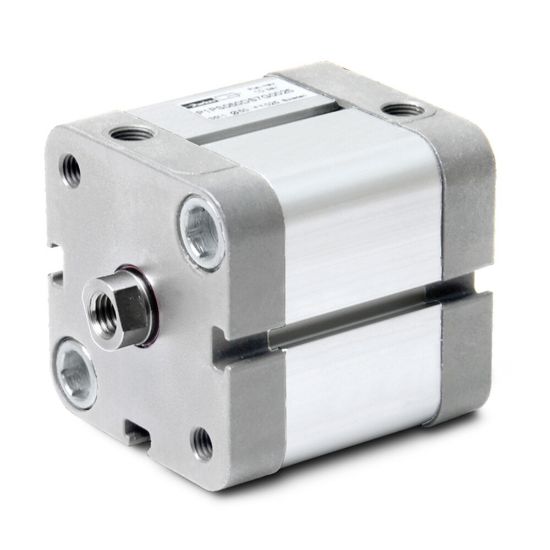

ISO 21287 COMPACT CYLINDERS, P1P SERIES - P1PS050DS8G0125

Name: ISO 21287 COMPACT CYLINDERS, P1P SERIES - P1PS050DS8G0125
SKU: P1PS050DS8G0125

The P1P actuator in bore sizes Ø20 to Ø100mm is an ISO 21287 compact cylinder for standard temperature -20°C to +80°C with high and low temperature options suitable for processing, packaging and handling applications.

Availability:

Backordered

SKU P1PS050DS8G0125

$298.89

Products specifications

Attribute name	Attribute value
UOM	EA	Switch Opening Temperature	-40 to 80 °C (Low)
Retract Stroke Force	138 to 4418 N	Cushioning Type	Rubber Buffer Fixed
Body Material	Aluminum	Extend Stroke Force	188 to 4712 N at 6 bar
Mounting Option	ISO 15552	Technology	Pneumatics
Piston Rod Material	Stainless Steel	Maximum Stroke Length	500 mm
Maximum Operating Pressure	145 psi	Division	Pneumatic Division
Specifications Met	ISO 21287	Cylinder Type	Non-Guided
Cylinder Action	Double Acting	Port Size	G 1/8
Product Type	Compact Cylinder	End Cap Material	Aluminum
Product Series	Pneumatic Cylinders	Corrosion Resistance Included	Yes
Repairable	Yes	Operating Temperature	-4 to 176 °F
Body Type	Profile	Bore Diameter	20 to 100 mm
Position Sensing Type	Sensor Slots on 4 Sides	Rod End Thread Type	Female

Product resources

Literature and Reference Materials

0963 P1P ISO21287 Compact Pneumatic Cylinders Catalog (PDF)
