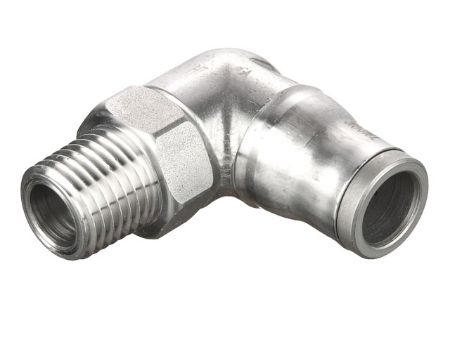

Legris LF3800 Series 3889 - Metric-Inch
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
Parker Legris LF3800 Series Metric-Inch Male Elbow 90°, Stainless Steel Push-to-Connect fittings offer the robustness, reliability and resistance to industrial fluids for the most demanding environments.
Read More...| Action | SKU | Availability | Partner Available | Price | UOM | UOM | Thread 1 | Outer Diameter 1 | Parker Group | Material | Parker Division | Operating Temperature | Outer Diameter 1 Inch/mm | Pressure Range | Material - Seal | Configuration Sub-Type | Configuration Type | Thread 1 | Thread 1 Type | Inch/Metric | Outer Diameter 1 | Trade Name | Series |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 3889 04 11 | Backordered | Backordered | $85.24/each | EA | EA | 1/8 NPT | 4 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | 1/8 NPT | NPT | Metric-Inch | 4 mm | Legris | Legris LF3800 | |
| 3889 06 11 | Backordered | Backordered | $95.84/each | EA | EA | 1/8 NPT | 6 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | 1/8 NPT | NPT | Metric-Inch | 6 mm | Legris | Legris LF3800 | |
| 3889 06 14 | Backordered | Backordered | $107.91/each | EA | EA | 1/4 NPT | 6 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | 1/4 NPT | NPT | Metric-Inch | 6 mm | Legris | Legris LF3800 | |
| 3889 08 11 | Backordered | Backordered | $119.62/each | EA | EA | 1/8 NPT | 8 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | 1/8 NPT | NPT | Metric-Inch | 8 mm | Legris | Legris LF3800 | |
| 3889 08 14 | Backordered | 3 in stock | $114.38/each | EA | EA | 1/4 NPT | 8 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | 1/4 NPT | NPT | Metric-Inch | 8 mm | Legris | Legris LF3800 | |
| 3889 10 14 | Backordered | Backordered | $144.55/each | EA | EA | 1/4 NPT | 10 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | 1/4 NPT | NPT | Metric-Inch | 10 mm | Legris | Legris LF3800 | |
| 3889 12 14 | Backordered | Backordered | $202.13/each | EA | EA | 1/4 NPT | 12 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | 1/4 NPT | NPT | Metric-Inch | 12 mm | Legris | Legris LF3800 | |
| 3889 12 18 | Backordered | Backordered | $196.26/each | EA | EA | 3/8 NPT | 12 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | 3/8 NPT | NPT | Metric-Inch | 12 mm | Legris | Legris LF3800 | |
| 3889 12 22 | Backordered | Backordered | $208.15/each | EA | EA | 1/2 NPT | 12 mm | Fluid Connector | Stainless Steel | Fluid Systems Connector (Brass Products) | -4˚ to +302˚F | mm | 7 to 290 psi | FKM Fluoroelastomer | Male Elbow 90° | Tube to Male | 1/2 NPT | NPT | Metric-Inch | 12 mm | Legris | Legris LF3800 |
