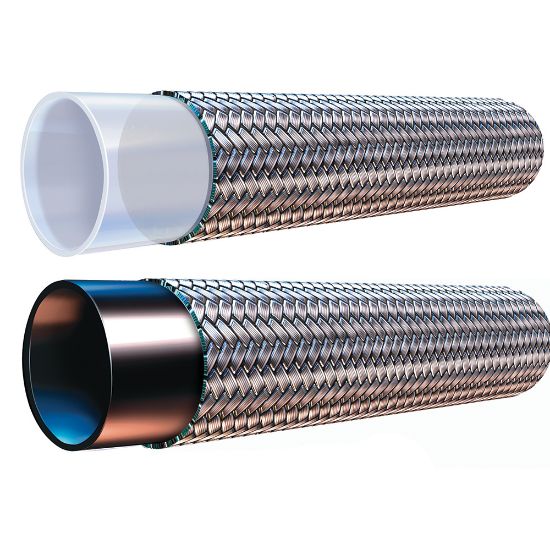

Picture of Stainless Steel Braided PTFE Hose - STW/STB - 04-STW

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Stainless Steel Braided PTFE Hose - STW/STB - 04-STW

Parker's STW/STB “True-Bore” Hose differs from other smoothbore PTFE hoses. This braided PTFE hose has a larger I.D. to speed up the flow of the media.
Availability:
Backordered
SKU 04-STW
$9.94
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTHose I.D. (inch)1/4
Hose StyleNaturalHose O.D. (inch)0.37
DivisionParflex DivisionMaximum Operating Pressure207 bar
MediaFood & Beverage (Cooking Oil)Outside Diameter9 mm
ApplicationFood & Beverage ProcessingProduct StyleTruebore
Size-4Weight0.13 kg/m
Cover Materialn/aInside Diameter1/4 inch
Compatible FittingPAGE SeriesSpecifications MetFDA (Core Tube)
Minimum Bend Radius76 mmVacuum Pressure Rating28 Inch-Hg
Hose Inner Tube MaterialNaturalHose Reinforcement MaterialBraid of Stainless Steel
Maximum Operating Temperature450 °FMinimum Operating Temperature-100 °F
Design Factor4:1
