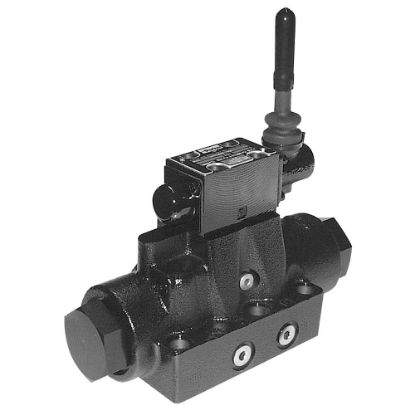

Lever Operated Directional Control Valve - D61VL Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s D61VL directional control valves are available in 2 or 3-position. They are manifold or subplate mounted valves which conform to NFPA’s D08, CETOP 8 mounting patterns.

Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities

Features/Benefits:
• Low pressure drop design
• Low force required to shift spool
• Hardened spools provide long life

Applications:
• Suitable for general hydraulic applications

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Maximum Operating Pressure	Mounting Type	Maximum Flow Rate	Size	Minimum Operating Temperature	Maximum Operating Pressure	Seal Material	Maximum Operating Temperature	Actuation Type	Maximum Flow Rate	Options	Size	Mounting Type	Body Material	Spool Position	Pilot Inlet / Drain Locations	Spool Code	Valve Type	Weight
D61VL001B2N	Backordered	Backordered	$1,582.56/each	EA	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA D08, CETOP 8, DIN NG25	-4 °F	207 bar	Nitrile	140 °F	Hydraulic Pressure	100 Gal/min	n/a	CETOP 8	Subplate	Gray Iron	Single Operator	External Pilot / External Drain	3-Position	Lever Operated Directional Control Valve	12.1 kg
D61VL001B4N	Backordered	Backordered	$1,582.56/each	EA	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA D08, CETOP 8, DIN NG25	-4 °F	207 bar	Nitrile	140 °F	Hydraulic Pressure	100 Gal/min	n/a	CETOP 8	Subplate	Gray Iron	Spring Offset	Internal Pilot / Internal Drain	3-Position	Lever Operated Directional Control Valve	26.7 lb
D61VL001C1N	Backordered	Backordered	$1,646.40/each	EA	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA D08, CETOP 8, DIN NG25	-4 °F	3000 psi	Nitrile	140 °F	Hydraulic Pressure	100 Gal/min	n/a	NFPA D08	Subplate	Gray Iron	3-Position	Internal Pilot / External Drain	3-Position	Lever Operated Directional Control Valve	26.7 lb
D61VL001C4V	Backordered	Backordered	$1,745.52/each	EA	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA D08, CETOP 8, DIN NG25	-4 °F	3000 psi	Fluorocarbon	140 °F	Hydraulic Pressure	100 Gal/min	n/a	NFPA D08	Subplate	Gray Iron	Double Operator	Internal Pilot / Internal Drain	4-Way	Lever Operated Directional Control Valve	12.1 kg
D61VL001D4N	Backordered	Backordered	$1,646.40/each	EA	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA D08, CETOP 8, DIN NG25	-4	3000	Nitrile	140	Hydraulic Pressure	100	n/a	NFPA D08	Subplate	Gray Iron	Double Operator	Internal Pilot / Internal Drain	4-Way	Lever Operated Directional Control Valve	26.7
D61VL004C1N	Backordered	Backordered	$1,646.40/each	EA	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA D08, CETOP 8, DIN NG25	-4 °F	3000 psi	Nitrile	140 °F	Hydraulic Pressure	100 Gal/min	n/a	CETOP 8	Subplate	Gray Iron	3-Position	Internal Pilot / External Drain	4-Way	Lever Operated Directional Control Valve	26.7 lb
D61VL004C4N	Backordered	Backordered	$1,646.40/each	EA	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA D08, CETOP 8, DIN NG25	-4 °F	207 bar	Nitrile	140 °F	Hydraulic Pressure	100 Gal/min	n/a	DIN NG25	Subplate	Gray Iron	3-Position	Internal Pilot / Internal Drain	3-Position	Lever Operated Directional Control Valve	26.7 lb
D61VL004C4V	Backordered	Backordered	$1,745.52/each	EA	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA D08, CETOP 8, DIN NG25	-4 °F	3000 psi	Fluorocarbon	140 °F	Hydraulic Pressure	100 Gal/min	n/a	CETOP 8	Subplate	Gray Iron	3-Position	Internal Pilot / Internal Drain	P Port Blocked	Lever Operated Directional Control Valve	12.1 kg
D61VL008C1N	Backordered	Backordered	$1,713.60/each	EA	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA D08, CETOP 8, DIN NG25	-4 °F	207 bar	Nitrile	140 °F	Hydraulic Pressure	80 Gal/min	n/a	DIN NG25	Subplate	Gray Iron	Double Operator	Internal Pilot / External Drain	P to T	Lever Operated Directional Control Valve	12.1 kg
D61VL009C1N	Backordered	Backordered	$1,713.60/each	EA	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA D08, CETOP 8, DIN NG25	-4 °F	207 bar	Nitrile	140 °F	Hydraulic Pressure	80 Gal/min	n/a	CETOP 8	Subplate	Gray Iron	3-Position	Internal Pilot / External Drain	P to T	Lever Operated Directional Control Valve	12.1 kg
D61VL009C5N	Backordered	Backordered	$1,632.00/each	EA	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA D08, CETOP 8, DIN NG25	-4 °F	207 bar	Nitrile	140 °F	Hydraulic Pressure	80 Gal/min	n/a	CETOP 8	Subplate	Gray Iron	Double Operator	External Pilot / Internal Drain	A & B Blocked	Lever Operated Directional Control Valve	12.1 kg
D61VL009C5N7	Backordered	Backordered	$2,210.88/each	EA	3000 PSI	Subplate	Up to 100 GPM depending on spool	NFPA D08, CETOP 8, DIN NG25	-4 °F	207 bar	Nitrile	140 °F	Hydraulic Pressure	80 Gal/min	Pilot Choke Meter-out	CETOP 8	Subplate	Gray Iron	Double Operator	External Pilot / Internal Drain	3-Position	Lever Operated Directional Control Valve	26.7 lb
