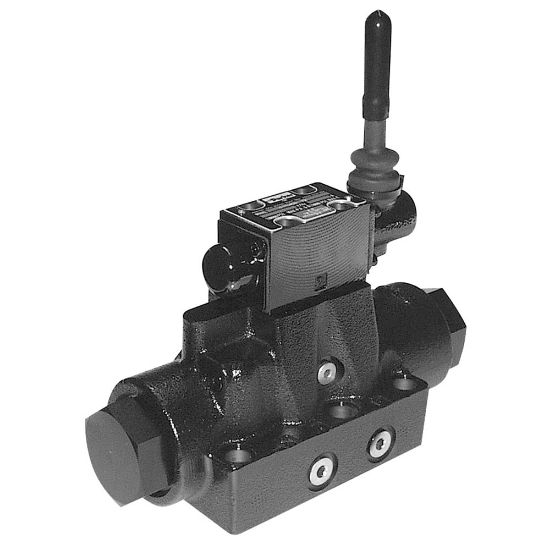

D61VL001B2N - Lever Operated Directional Control Valve - D61VL Series

Parker’s D61VL directional control valves are 5-chamber, lever operated valves.

Availability:	Backordered Estimated Lead Time: 19 days
Partner Available:	Backordered

SKU D61VL001B2N

$1,582.56/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Pressure	3000 PSI
Mounting Type	Subplate	Maximum Flow Rate	Up to 100 GPM depending on spool
Size	NFPA D08, CETOP 8, DIN NG25	Minimum Operating Temperature	-4 °F
Maximum Operating Pressure	207 bar	Seal Material	Nitrile
Maximum Operating Temperature	140 °F	Actuation Type	Hydraulic Pressure
Maximum Flow Rate	100 Gal/min	Options	n/a
Size	CETOP 8	Mounting Type	Subplate
Body Material	Gray Iron	Spool Position	Single Operator
Pilot Inlet / Drain Locations	External Pilot / External Drain	Spool Code	3-Position
Valve Type	Lever Operated Directional Control Valve	Weight	12.1 kg

Product resources

Literature and Reference Materials

Lever Operated Directional Control Valve Catalog - D61VL Series (PDF)
