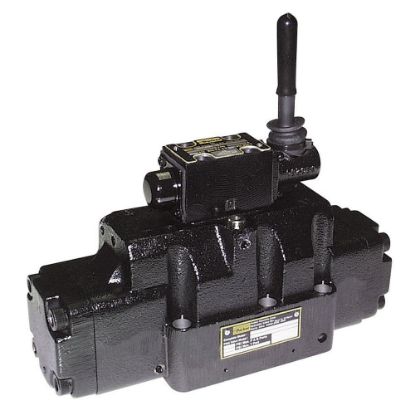

Lever Operated Directional Control Valve - D81VL Series

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker’s D81VL directional control valves are available in 2 or 3-position. They are manifold or subplate mounted valves which conform to NFPA’s D08, CETOP 8 mounting patterns.

Markets:
• Entertainment Automation
• Factory Automation
• Lumber & Wood
• Machine Tools
• Marine
• Material Handling
• Miscellaneous Industrial
• Miscellaneous Manufacturing
• Miscellaneous Processing
• Molding
• Oil & Gas
• Other Natural Resources
• Packaging Machinery
• Plastic Packaging
• Power Generation
• Primary Metal Refining/Process
• Printing and Marking Equipment
• Rubber & Tire Processing
• Vehicle Assembly Facilities

Features/Benefits:
• Low pressure drop design
• Low force required to shift spool
• Hardened spools provide long life

Applications:
• Suitable for general hydraulic applications

View as Grid List

Sort by

Display per page

Action	SKU	Availability	Partner Available	Price	UOM	Body Material	Pilot Inlet / Drain Locations	Spool Code	Maximum Operating Temperature	Options	Valve Type	Spool Position	Weight	Minimum Operating Temperature	Size	Maximum Flow Rate	Seal Material	Maximum Operating Pressure	Mounting Type	Actuation Type
	D81VL001C4N	Backordered	Backordered	POR	EA	Grey Iron	Int. Pilot/Int. Drain	4-way, 3 position; All Ports Blocked	+140	n/a	Lever Operated Directional Control Valve	Double Operator, 3 position, spring centered	26.7	-4	NFPA D08, CETOP 8, NG25	160	Nitrile	5000	Subplate	Hydraulic Pressure
	D81VL002C1N	Backordered	Backordered	POR	EA	Grey Iron	Int. Pilot/Ext. Drain	4-way, 3 position; All Ports Open	+140	n/a	Lever Operated Directional Control Valve	Double Operator, 3 position, spring centered	26.7	-4	NFPA D08, CETOP 8	160	Nitrile	5000	Subplate	Hydraulic Pressure
