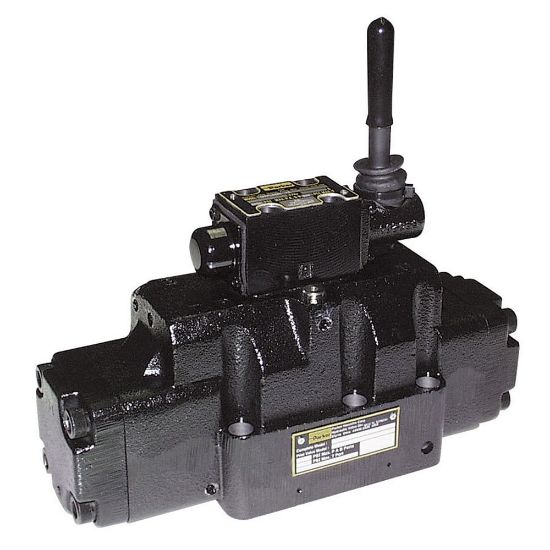

Picture of Lever Operated Directional Control Valve - D81VL Series - D81VL001C4N

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Lever Operated Directional Control Valve - D81VL Series - D81VL001C4N

Parker’s D81VL directional control valves are 5-chamber, lever operated valves
Availability:
Backordered
SKU D81VL001C4N
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEABody MaterialGrey Iron
Pilot Inlet / Drain LocationsInt. Pilot/Int. DrainSpool Code4-way, 3 position; All Ports Blocked
Maximum Operating Temperature+140Optionsn/a
Valve TypeLever Operated Directional Control ValveSpool PositionDouble Operator, 3 position, spring centered
DivisionHydraulic Valve Systems DivisionWeight26.7
Minimum Operating Temperature-4SizeNFPA D08, CETOP 8, NG25
Maximum Flow Rate160Seal MaterialNitrile
Maximum Operating Pressure5000Mounting TypeSubplate
Actuation TypeHydraulic Pressure
