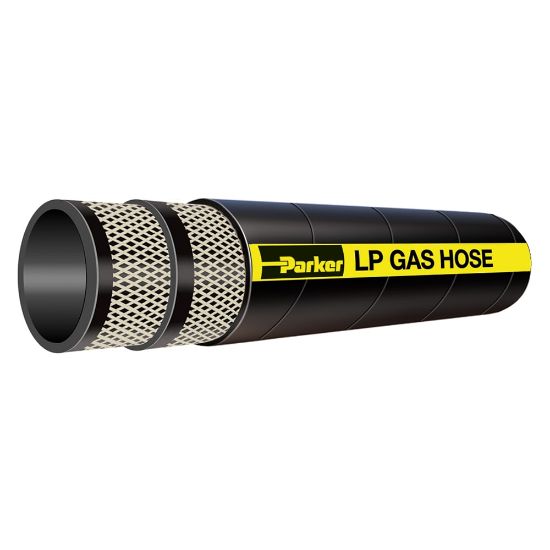

7232-1252 - Liquid Petroleum Gas LPG Hose, Series 7232

Liquid Petroleum Gas LPG Hose is designed for bulk/high volume supply and transfer of propane in applications to 140°F and 350 psi, Series 7232

Availability:	Backordered Estimated Lead Time: 12 days
Partner Available:	Backordered

SKU 7232-1252

$29.40/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	1-1/4
Standard Pack Qty (ft)	300	Maximum Working Pressure (psi)	350
Minimum Operating Temperature	-40 °C	Maximum Operating Pressure	350 psi
Cover Color	Black	Inside Diameter	31.8 mm
Package Type	Reel	Hose Inner Tube Material	Black
Cover Material	Chloroprene Rubber (CR)	Compatible Fitting	HY Series
Maximum Operating Temperature	82 °C	Minimum Bend Radius	304.8 mm
Cover Structure	Perforated	Media	LPG
Specifications Met	UL 21.0	Weight	1.27 kg/m
Outside Diameter	46.1 mm	Hose Reinforcement Material	2 Braids of Textile

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
