*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

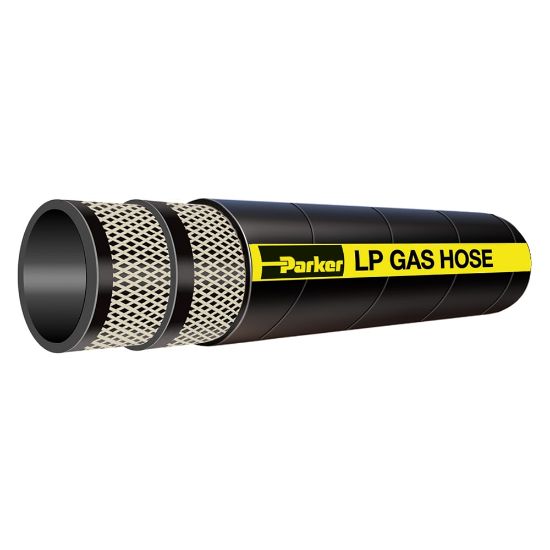

7232-2003K - Liquid Petroleum Gas LPG Hose, Series 7232

Liquid Petroleum Gas LPG Hose is designed for bulk/high volume supply and transfer of propane in applications to 140°F and 350 psi, Series 7232

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	2523 in stock

SKU 7232-2003K

$55.50/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Hose I.D. (inch)	2
Maximum Working Pressure (psi)	350	Standard Pack Qty (ft)	150
Minimum Operating Temperature	-40 °F	Package Type	Carton
Cover Color	Black	Maximum Operating Temperature	180 °F
Inside Diameter	2 inch	Hose Inner Tube Material	Black
Cover Material	Chloroprene Rubber (CR)	Maximum Operating Pressure	24.1 bar
Compatible Fitting	7661 Series	Cover Structure	Perforated
Media	Propane	Specifications Met	CSA 8.1, Type I
Minimum Bend Radius	16 inch	Weight	1.90 lb/ft
Outside Diameter	2.750 inch	Hose Reinforcement Material	3 Braids of Textile

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
