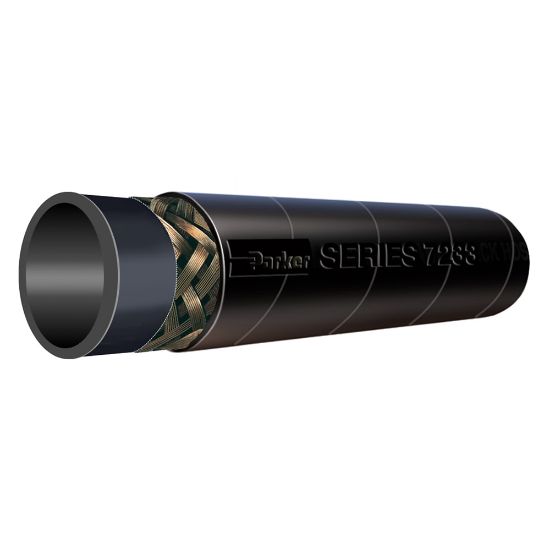

7233-311 - Liquid Petroleum Gas LPG Hose, Series 7233

Liquid Petroleum Gas LPG Hose is designed for propane fuel line service on forklift and utility vehicle applications in applications to 140°F and 350 psi, Series 7233

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	372 in stock

SKU 7233-311

$11.02/foot

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Minimum Operating Temperature	-40 °F
Length per Package	500 ft	Minimum Bend Radius	4 inch
Cover Color	Black	Inside Diameter	7.9 mm
Package Type	Reel	Cover Material	Chloroprene Rubber (CR)
Compatible Fitting	HY Series	Hose Inner Tube Material	Nitrile
Maximum Operating Temperature	82 °C	Maximum Operating Pressure	24.1 bar
Cover Structure	Perforated	Media	LPG
Specifications Met	UL 21.0	Weight	0.19 lb
Outside Diameter	0.675 inch	Hose Reinforcement Material	1 Braid of Stainless Steel Wire
Tube Material	Nitrile

Product resources

Literature and Reference Materials

Hose Products Division Catalog 4400 - Hose, Fittings, Accessories and Equipment (PDF)
