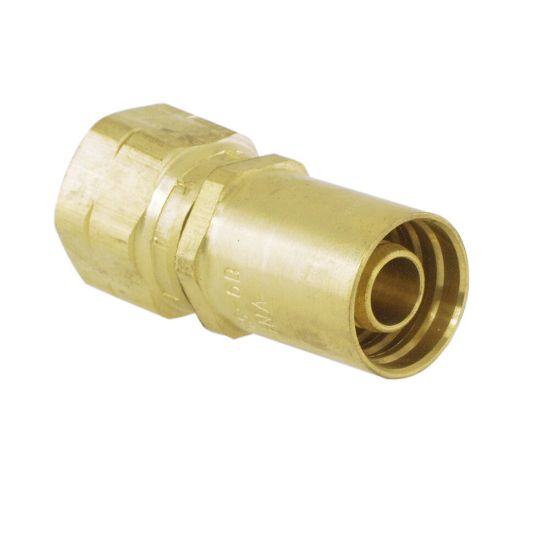

Marine Hose Fittings – MS Series - 108MS-6-5B

Name: Marine Hose Fittings – MS Series - 108MS-6-5B
SKU: 108MS-6-5B

MS series are available in both permanent crimp and field attachable brass constructions for corrosion resistance in marine steering applications.

Availability:

Backordered

SKU 108MS-6-5B

$19.57

Products specifications

Attribute name	Attribute value
UOM	EA	Body Material	BRASS
Shape	Straight	Connection 2 Size	5/8"-18
Connection 2 Type	Permanent Crimp, Female SAE 45° - Swivel	Connection 1 Hose Inside Diameter	5/16" (I.D.)
Brand	PARKER	Division	Parflex Division
Body Material	Brass	Shape	Straight
Technology	Fluid & Gas Handling	Specifications Met	N/A
Division	Parflex Division	Product Type	Hose Fittings
Configuration	Hose to Port	Connection 1 Type	Hose
Hex Size	5/8 inch (see drawing legend H)	Coating	n/a
Connection 2 Size	5/8"-18 inch Thread	Connection 2 Type	45° Flare SAE
Fitting Length	45 mm (see drawing legend A)	Connection 1 Size	8 mm
Connection Length	29 mm	Industry	Marine
Hex Size 2	13/16 inch (see drawing legend J)	Application	Medium Pressure Hydraulics
For Fluid Type	Petroleum Hydraulic Fluids	Maximum Operating Pressure	103 bar
