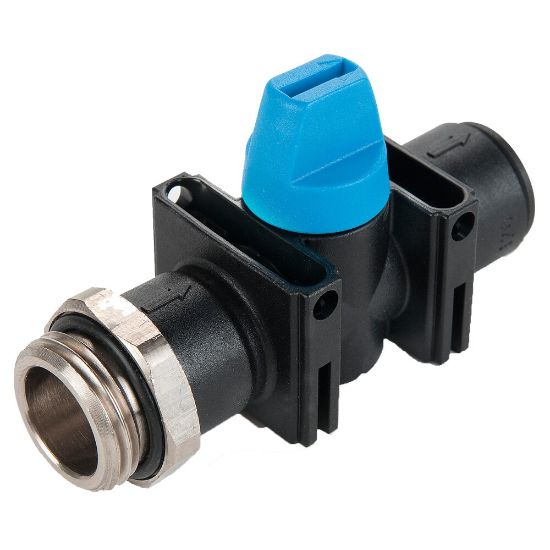

MV308-12M-8G - Mini Ball Valves

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.

Availability:	Backordered Estimated Lead Time: 36 days
Partner Available:	Backordered

SKU MV308-12M-8G

$85.06/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Maximum Operating Temperature	80 °C
Minimum Operating Temperature	-4 °F	Specifications Met	N/A
Vacuum Pressure Rating	28 Inch-Hg	Seal Material	NBR
Maximum Operating Pressure	10 bar	Gripping Ring Material	Stainless Steel
Media	Compressed Air	Maximum Flow Rate	n/a
Body Material	Nylon	Configuration	Tube to Pipe
Shape	In-Line	Actuation Type	Manual
Vented	No	Operation Type	n/a
Function	2-Way, Normally Open, Normally Closed	Connection Size	12 x G1/2 mm
Connection Type	PTC X BSPP	Handle Type	Nylon
Orifice Size	.38	Ball Material	Brass
Mounting Type	Panel	Seat Material	Nylon
Stem Material	Brass
