Mini Ball Valves

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. Handles are color coded and marked with the corresponding pneumatic symbol, in order to enable immediate identification by the user. With their push-in connections, these polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.
Use with the following Parker Parflex Division tubing.
• Nylon
• Semi-rigid Nylon
• Polyurethane 90 Durometer Shore A
• Fluoropolymer

Markets:
• Factory/Process Automation
• Packaging
• Petrochemical
• Pneumatics
• Semi-conductor

Features/Benefits:

• Full flow
• Marked with the pneumatic symbol for identification of its function
• Lightweight
• Extremely compact, easy-to-operate lever
• Lever with screwdriver slot to facilitate operation
• Designed for polymer tubing with no tube preparation
• NBR stem seal and o-ring

Applications:

• Machine Tools
• Pneumatic Systems
• Robotics
• Vacuum Lines
• Textile

View as Grid List

Sort by

Display per page

SKU	Availability	Partner Available	Price	UOM	Maximum Operating Temperature	Minimum Operating Temperature	Specifications Met	Vacuum Pressure Rating	Seal Material	Maximum Operating Pressure	Gripping Ring Material	Media	Maximum Flow Rate	Body Material	Configuration	Shape	Actuation Type	Vented	Operation Type	Function	Connection Size	Connection Type	Handle Type	Orifice Size	Ball Material	Mounting Type	Seat Material	Stem Material

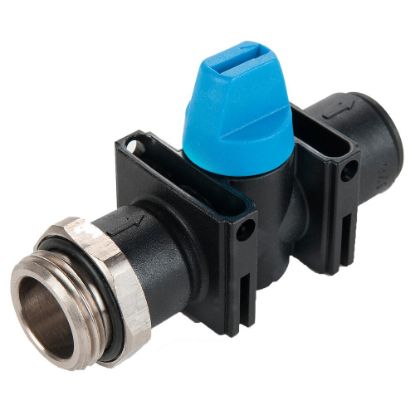

MV308-10M-6G	Backordered	Backordered	$76.56/each	EA	80 °C	-4 °F	N/A	28 Inch-Hg	NBR	10 bar	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Pipe	In-Line	Manual	No	n/a	2-Way, Normally Open, Normally Closed	10 x G3/8 mm	BSPP X PTC	Nylon	.28	Brass	Panel	Nylon	Brass
MV308-12M-8G	Backordered	Backordered	$85.06/each	EA	80 °C	-4 °F	N/A	28 Inch-Hg	NBR	10 bar	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Pipe	In-Line	Manual	No	n/a	2-Way, Normally Open, Normally Closed	12 x G1/2 mm	PTC X BSPP	Nylon	.38	Brass	Panel	Nylon	Brass
MV308-6M-2G	Backordered	Backordered	$51.93/each	EA	80 °C	-20 °C	N/A	28 Inch-Hg	NBR	10 bar	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Pipe	In-Line	Manual	No	n/a	2-Way, Normally Open, Normally Closed	6 x G1/8 mm	PTC X BSPP	Nylon	.16	Brass	Panel	Nylon	Brass

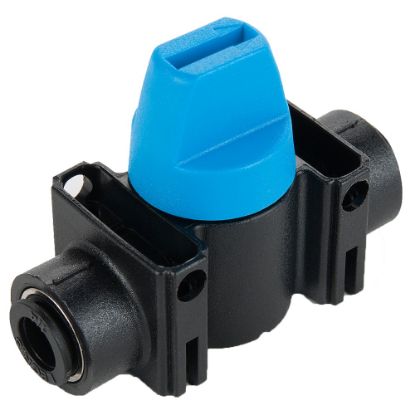

MV309-10M	Backordered	Backordered	$49.30/each	EA	175 °F	-4 °F	N/A	28 Inch-Hg	NBR	145 psi	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Tube	In-Line	Manual	No	n/a	2-Way, Normally Open, Normally Closed	10 x 10 mm	PTC	Nylon	.28	Brass	Panel	Nylon	Brass
MV309-12M	Backordered	1 Limited Stock	$47.33/each	EA	80 °C	-4 °F	N/A	28 Inch-Hg	NBR	145 psi	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Tube	In-Line	Manual	No	n/a	2-Way, Normally Open, Normally Closed	12 x 12 mm	PTC	Nylon	.35	Brass	Panel	Nylon	Brass
MV309-4	4 in stock	38 in stock	$34.90/each	EA	80 °C	-20 °C	N/A	28 Inch-Hg	NBR	10 bar	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Tube	In-Line	Manual	No	n/a	2-Way, Normally Open, Normally Closed	1/4 x 1/4 inch	PTC	Nylon	.17	Brass	Panel	Nylon	Brass
MV309-4M	Backordered	3 in stock	$38.24/each	EA	175 °F	-20 °C	N/A	28 Inch-Hg	NBR	10 bar	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Tube	In-Line	Manual	No	n/a	2-Way, Normally Open, Normally Closed	4 x 5/32 mm	PTC	Nylon	.10	Brass	Panel	Nylon	Brass
MV309-6	4 in stock	7 in stock	$40.72/each	EA	80 °C	-4 °F	N/A	28 Inch-Hg	NBR	145 psi	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Tube	In-Line	Manual	No	n/a	2-Way, Normally Open, Normally Closed	3/8 x 3/8 inch	PTC	Nylon	.25	Brass	Panel	Nylon	Brass
MV309-6M	3 in stock	9 in stock	$39.53/each	EA	175 °F	-4 °F	N/A	28 Inch-Hg	NBR	145 psi	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Tube	In-Line	Manual	No	n/a	2-Way, Normally Open, Normally Closed	6 x 6 mm	PTC	Nylon	.16	Brass	Panel	Nylon	Brass
MV309-8M	Backordered	45 in stock	$37.48/each	EA	80 °C	-4 °F	N/A	28 Inch-Hg	NBR	145 psi	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Tube	In-Line	Manual	No	n/a	2-Way, Normally Open, Normally Closed	8 x 8 mm	PTC	Nylon	.24	Brass	Panel	Nylon	Brass

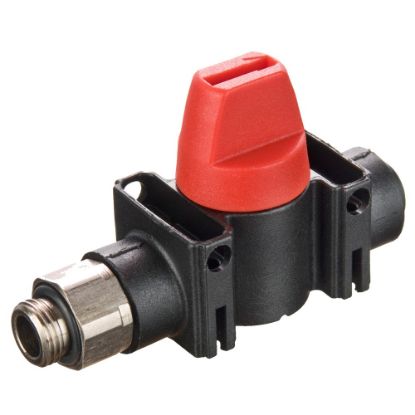

MVV308-10M-6G	Backordered	Backordered	$86.93/each	EA	80 °C	-4 °F	N/A	28 Inch-Hg	NBR	145 psi	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Pipe	In-Line	Manual	Yes	n/a	2-Way, Normally Open, Normally Closed	10 x G3/8 mm	PTC x NPT	Nylon	.28	Brass	Panel	Nylon	Brass

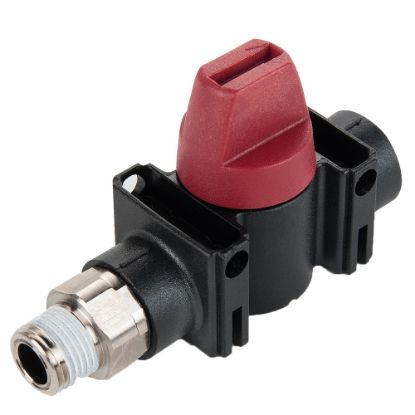

MVV308-4-2	Backordered	Backordered	$38.65/each	EA	175 °F	-20 °C	N/A	28 Inch-Hg	NBR	10 bar	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Pipe	In-Line	Manual	Yes	n/a	2-Way, Normally Open, Normally Closed	1/4 x 1/8 inch	PTC x NPT	Nylon	.06	Brass	Panel	Nylon	Brass
MVV308-4-4	Backordered	Backordered	$38.65/each	EA	175 °F	-20 °C	N/A	28 Inch-Hg	NBR	10 bar	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Pipe	In-Line	Manual	Yes	n/a	2-Way, Normally Open, Normally Closed	1/4 x 1/4 inch	PTC x NPT	Nylon	.17	Brass	Panel	Nylon	Brass
MVV308-6-4	Backordered	Backordered	$43.43/each	EA	80 °C	-4 °F	N/A	28 Inch-Hg	NBR	10 bar	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Pipe	In-Line	Manual	Yes	n/a	2-Way, Normally Open, Normally Closed	3/8 x 1/4 inch	PTC x NPT	Nylon	.17	Brass	Panel	Nylon	Brass
MVV308-6-6	Backordered	Backordered	$47.84/each	EA	80 °C	-20 °C	N/A	28 Inch-Hg	NBR	10 bar	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Pipe	In-Line	Manual	Yes	n/a	2-Way, Normally Open, Normally Closed	3/8 x 3/8 inch	PTC x NPT	Nylon	.25	Brass	Panel	Nylon	Brass
MVV308-6M-2G	Backordered	7 in stock	$60.28/each	EA	175 °F	-4 °F	N/A	28 Inch-Hg	NBR	145 psi	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Pipe	In-Line	Manual	Yes	n/a	2-Way, Normally Open, Normally Closed	6 x G1/8 mm	PTC x NPT	Nylon	.16	Brass	Panel	Nylon	Brass
MVV308-8M-4G	Backordered	7 in stock	$59.09/each	EA	175 °F	-4 °F	N/A	28 Inch-Hg	NBR	145 psi	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Pipe	In-Line	Manual	Yes	n/a	2-Way, Normally Open, Normally Closed	8 x G1/4 mm	PTC x NPT	Nylon	.24	Brass	Panel	Nylon	Brass

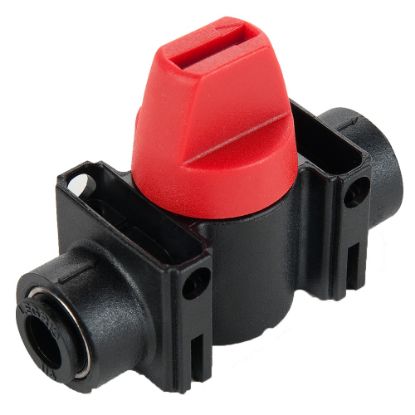

MVV309-10M	Backordered	Backordered	$48.32/each	EA	80 °C	-20 °C	N/A	28 Inch-Hg	NBR	10 bar	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Tube	In-Line	Manual	Yes	n/a	2-Way, Normally Open, Normally Closed	10 x 10 mm	PTC	Nylon	.28	Brass	Panel	Nylon	Brass
MVV309-12M	Backordered	Backordered	$42.17/each	EA	175 °F	-4 °F	N/A	28 Inch-Hg	NBR	10 bar	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Tube	In-Line	Manual	Yes	n/a	2-Way, Normally Open, Normally Closed	12 x 12 mm	PTC	Nylon	.35	Brass	Panel	Nylon	Brass
MVV309-4	Backordered	1 Limited Stock	$33.16/each	EA	80 °C	-4 °F	N/A	28 Inch-Hg	NBR	145 psi	Stainless Steel	Compressed Air	n/a	Nylon	Tube to Tube	In-Line	Manual	Yes	n/a	2-Way, Normally Open, Normally Closed	1/4 x 1/4 inch	PTC	Nylon	.17	Brass	Panel	Nylon	Brass
