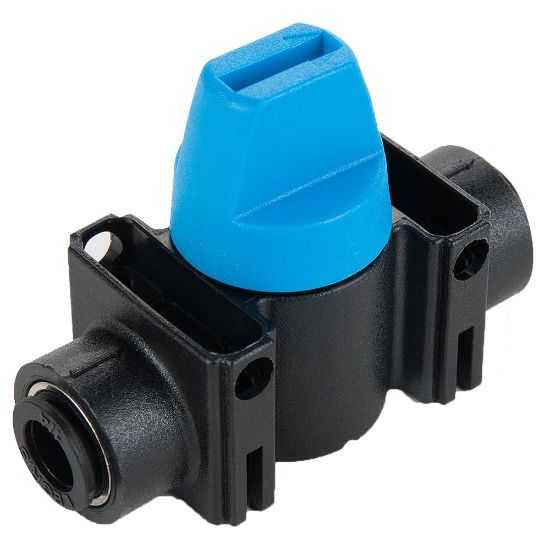

Picture of Mini Ball Valves - MV309-12M

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Mini Ball Valves - MV309-12M

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.
Availability:
Backordered
SKU MV309-12M
$47.33
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionFluid System Connectors Division
Maximum Operating Temperature80 °CMinimum Operating Temperature-4 °F
Specifications MetN/AVacuum Pressure Rating28 Inch-Hg
Seal MaterialNBRGripping Ring MaterialStainless Steel
MediaCompressed AirMaximum Flow Raten/a
Body MaterialNylonConfigurationTube to Tube
ShapeIn-LineMaximum Operating Pressure145 psi
Actuation TypeManualVentedNo
Operation Typen/aFunction2-Way, Normally Open, Normally Closed
ApplicationPneumatics,Packaging, Vacuum,Robotics, TextileConnection Size12 x 12 mm
Connection TypePTCHandle TypeNylon
Orifice Size.35Product TypeMini Ball Valve
Ball MaterialBrassMounting TypePanel
Seat MaterialNylonStem MaterialBrass
California Residents: Prop-65 Warning
