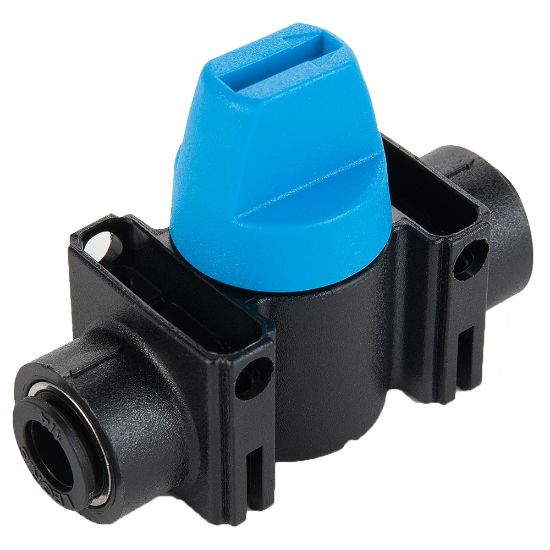

Picture of Mini Ball Valves - MV309-6M

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Mini Ball Valves - MV309-6M

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.
Availability:
3 in stock
WICHITA, KS3
SKU MV309-6M
$39.53
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEADivisionFluid System Connectors Division
Minimum Operating Temperature-4 °FSpecifications MetN/A
Vacuum Pressure Rating28 Inch-HgSeal MaterialNBR
Gripping Ring MaterialStainless SteelMediaCompressed Air
Maximum Operating Temperature175 °FMaximum Flow Raten/a
Body MaterialNylonConfigurationTube to Tube
ShapeIn-LineMaximum Operating Pressure145 psi
Actuation TypeManualVentedNo
Operation Typen/aFunction2-Way, Normally Open, Normally Closed
ApplicationPneumatics,Packaging, Vacuum,Robotics, TextileConnection TypePTC
Handle TypeNylonOrifice Size.16
Product TypeMini Ball ValveBall MaterialBrass
Mounting TypePanelSeat MaterialNylon
Stem MaterialBrassConnection Size6 x 6 mm
