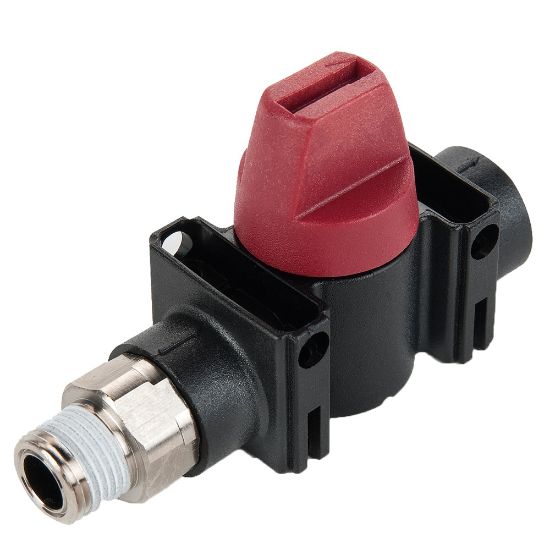

Picture of Mini Ball Valves - MVV308-4-4

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Mini Ball Valves - MVV308-4-4

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.
Availability:
Backordered
SKU MVV308-4-4
$38.65
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEASeat MaterialNylon
Operation Typen/aConnection TypePTC x NPT
Vacuum Pressure Rating28 Inch-HgHandle TypeNylon
Maximum Flow Raten/aActuation TypeManual
Ball MaterialBrassFunction2-Way, Normally Open, Normally Closed
Minimum Operating Temperature-20 °CConnection Size1/4 x 1/4 inch
ConfigurationTube to PipeMaximum Operating Pressure10 bar
ShapeIn-LineSeal MaterialNBR
VentedYesMediaCompressed Air
Gripping Ring MaterialStainless SteelDivisionFluid System Connectors Division
Body MaterialNylonStem MaterialBrass
Maximum Operating Temperature175 °FOrifice Size.17
ApplicationPneumatics,Packaging, Vacuum,Robotics, TextileSpecifications MetN/A
Product TypeMini Ball ValveMounting TypePanel
