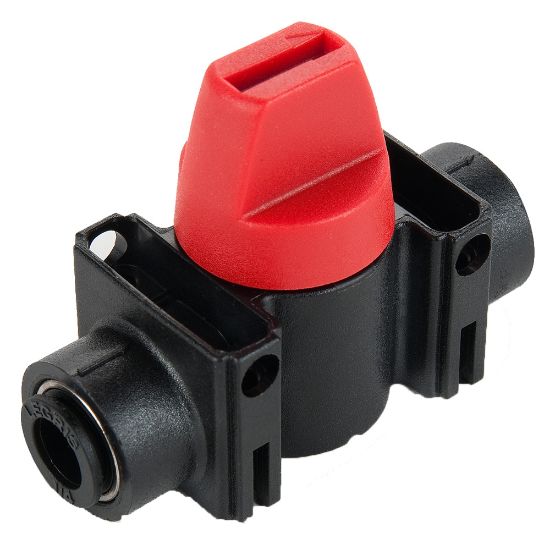

Picture of Mini Ball Valves - MVV309-10M

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Mini Ball Valves - MVV309-10M

Parker's mini ball valves enable in-line opening and closing of a pneumatic circuit. These polymer lightweight ball valves allow for a significant reduction in installation time while offering full flow capability and compact dimensions.
Availability:
Backordered
SKU MVV309-10M
$48.32
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAShapeIn-Line
Seal MaterialNBRMaximum Operating Temperature80 °C
Seat MaterialNylonGripping Ring MaterialStainless Steel
MediaCompressed AirBody MaterialNylon
Ball MaterialBrassDivisionFluid System Connectors Division
Maximum Operating Pressure10 barActuation TypeManual
Minimum Operating Temperature-20 °CMaximum Flow Raten/a
Orifice Size.28Connection Size10 x 10 mm
Function2-Way, Normally Open, Normally ClosedMounting TypePanel
Product TypeMini Ball ValveConnection TypePTC
VentedYesHandle TypeNylon
Operation Typen/aVacuum Pressure Rating28 Inch-Hg
Stem MaterialBrassConfigurationTube to Tube
ApplicationPneumatics,Packaging, Vacuum,Robotics, TextileSpecifications MetN/A
California Residents: Prop-65 Warning
