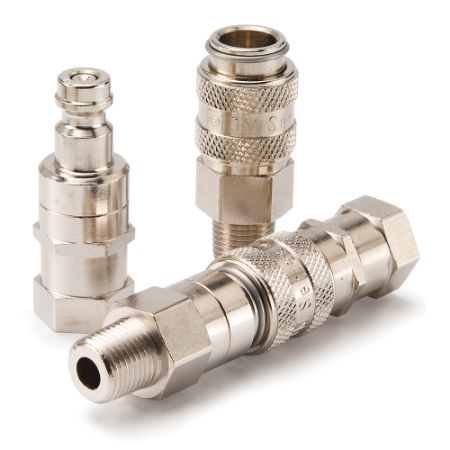

Miniature Size, Double Shut-off, Push to Connect Quick Couplings - DM Series
*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.
DM Series Couplers (fluid) up to 250 psi connect with DM Series Nipples.
Parker's DM Series are double shut-off, corrosion resistant miniature quick couplings. They offer push to connect operation in a small size. Couplers and nipples are available in 1/8"; size only with a pressure rating of 250 psi.
Technical Characteristics:
• Sizes: 1/8”
• Materials: Nickel Plated Brass
• Port Ends: Female NPTF, Male NPTF
• Seal: Fluorocarbon
Markets:
• Medical device
• Semiconductor
Features/Benefits:
• Brass bodies are nickel plated to increase corrosion resistance and chemical compatibility
• Fluorocarbon seals are compatible with many fluids
• Easy push to connect operation
• Compact size
Applications:
• Dental equipment
• Lubrication lines
• Fluid transfer
• Coolant lines
Read More...Parker's DM Series are double shut-off, corrosion resistant miniature quick couplings. They offer push to connect operation in a small size. Couplers and nipples are available in 1/8"; size only with a pressure rating of 250 psi.
Technical Characteristics:
• Sizes: 1/8”
• Materials: Nickel Plated Brass
• Port Ends: Female NPTF, Male NPTF
• Seal: Fluorocarbon
Markets:
• Medical device
• Semiconductor
Features/Benefits:
• Brass bodies are nickel plated to increase corrosion resistance and chemical compatibility
• Fluorocarbon seals are compatible with many fluids
• Easy push to connect operation
• Compact size
Applications:
• Dental equipment
• Lubrication lines
• Fluid transfer
• Coolant lines
| Action | SKU | Availability | Partner Available | Price | UOM | Body Size | Connection Thread Size | Coupling Half | Connection Type | Maximum Operating Temperature | Body Material | Flow Rate | Valve Type | Plating Type | Seal Material | Maximum Operating Pressure | Minimum Operating Temperature | Hex Size |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

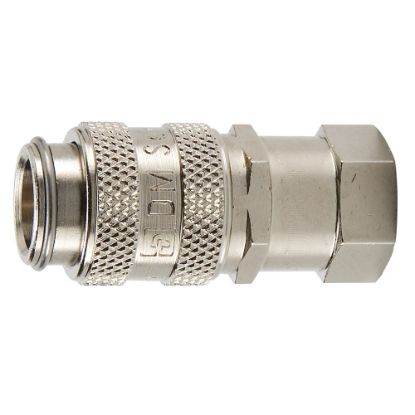

| DM-121-2FP | Backordered | Backordered | $22.10/each | EA | 1/8 | 1/8 - 27 | Female Coupler | Female NPTF | 400.0 °F | Steel | 0.8 Gal/min | Poppet | Nickel Plated | Fluorocarbon | 250.0 psi | -15.0 °F | 0.55 inch | |

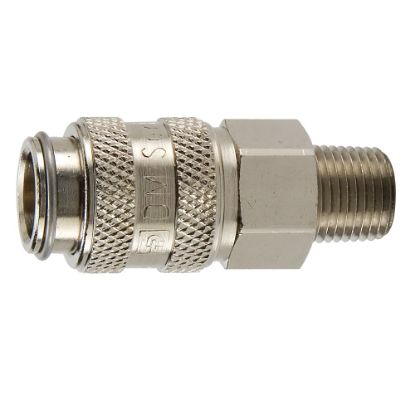

| DM-121-2MP | Backordered | Backordered | POR | EA | 1/8 | 1/8 - 27 | Female Coupler | Male NPTF | 400.0 °F | Steel | 0.8 Gal/min | Poppet | Nickel Plated | Fluorocarbon | 250.0 psi | -15.0 °F | 0.55 inch | |
| DM-121-4FP | Backordered | Backordered | $24.87/each | EA | 1/8 | 1/4 - 18 | Female Coupler | Female NPTF | 400.0 °F | Steel | 0.8 Gal/min | Poppet | Nickel Plated | Fluorocarbon | 250.0 psi | -15.0 °F | 0.67 inch | |
| DM-121-4MP | Backordered | Backordered | $30.93/each | EA | 1/8 | 1/4 - 18 | Female Coupler | Male NPTF | 400.0 °F | Steel | 0.8 Gal/min | Poppet | Nickel Plated | Fluorocarbon | 250.0 psi | -15.0 °F | 0.55 inch | |
| DM-122-2FP | Backordered | Backordered | $19.79/each | EA | 1/8 | 1/8 - 27 | Male Nipple | Female NPTF | 400.0 °F | Brass | 0.8 Gal/min | Poppet | Nickel Plated | Fluorocarbon | 250.0 psi | -15.0 °F | 0.55 inch | |
| DM-122-2MP | Backordered | Backordered | $20.66/each | EA | 1/8 | 1/8 - 27 | Male Nipple | Male UNF | 400.0 °F | Brass | 0.8 Gal/min | Poppet | Nickel Plated | Fluorocarbon | 250.0 psi | -15.0 °F | 0.55 inch | |
| DM-122-4FP | Backordered | Backordered | $22.72/each | EA | 1/8 | 1/4 - 18 | Male Nipple | Female NPTF | 400.0 °F | Brass | 0.8 Gal/min | Poppet | Nickel Plated | Fluorocarbon | 250.0 psi | -15.0 °F | 0.67 inch | |
| DM-122-4MP | Backordered | Backordered | $23.78/each | EA | 1/8 | 1/4 - 18 | Male Nipple | Male UNF | 400.0 °F | Brass | 0.8 Gal/min | Poppet | Nickel Plated | Fluorocarbon | 250.0 psi | -15.0 °F | 0.55 inch |
