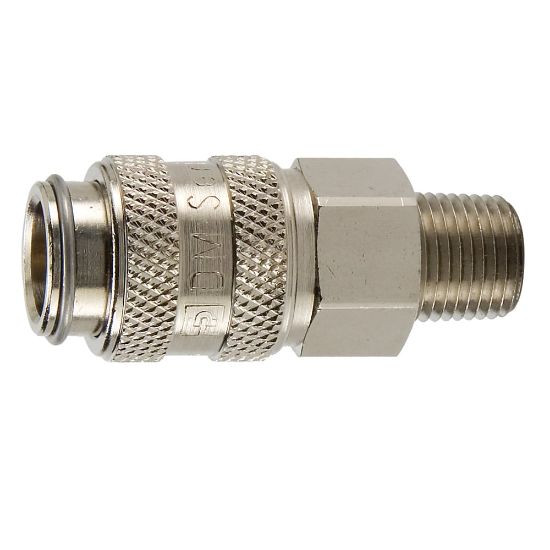

DM-121-2MP - Miniature Size, Double Shut-off, Push to Connect Quick Couplings - DM Series

Note: This product is no longer available - please refer to the “Recommended Products” section of this page for alternative products, or contact us for further assistance.

Availability:	Backordered Estimated Lead Time: 21 days
Partner Available:	Backordered

SKU DM-121-2MP

Products specifications

Attribute name	Attribute value
UOM	EA	Coupling Half	Female Coupler
Connection Thread Size	1/8 - 27	Body Size	1/8
Connection Type	Male NPTF	Seal Material	Fluorocarbon
Valve Type	Poppet	Maximum Operating Pressure	250.0 psi
Plating Type	Nickel Plated	Minimum Operating Temperature	-15.0 °F
Maximum Operating Temperature	400.0 °F	Body Material	Steel
Flow Rate	0.8 Gal/min	Hex Size	0.55 inch
