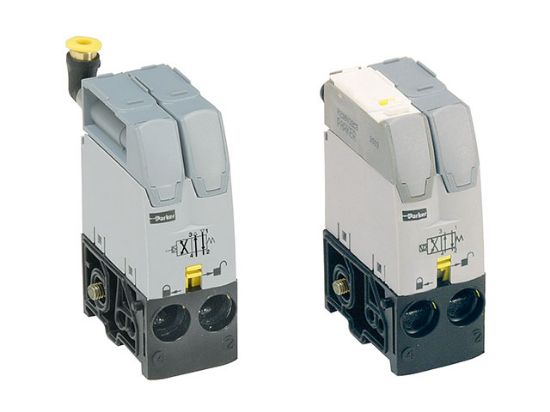

Moduflex T Series - Size 1 Valve - P2M1T3ES2C

Name: Moduflex T Series - Size 1 Valve - P2M1T3ES2C
SKU: P2M1T3ES2C

Parker flexible manifold valve system for individual solenoid wiring for use with integrated Push-to-Connect fittings

Availability:

Backordered

SKU P2M1T3ES2C

$70.55

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Operator Type Detail	Single
Pilot Supply	Internal	Solenoid Voltage	24 VDC
Override Type	Multi-function	Operator Type	Solenoid
CV Factor	0.22	Parker Group	Automation
Parker Division	Pneumatic	Valve Positions	2-position
Offset Return Type	Spring Return	Valve Passages	3-way
Operator Type	Solenoid	Operator Type Detail	Single
Pilot Supply	Internal	Series	Moduflex
Operating Temperature	5°F to 140°F (-15°C to 60°C)	Trade Name	Moduflex
Supply Pressure Range	Vacuum to 123 PSIG (Vacuum to 8.3 bar)	Solenoid Voltage	24 VDC
Override Type	Multi-function	CV Factor	0.22
Pneumatic Valve Type	Manifold Valve	Center Condition	NC w/Exhaust Check
Solenoid Connection	M8	Series Type	T Series - Size 1
