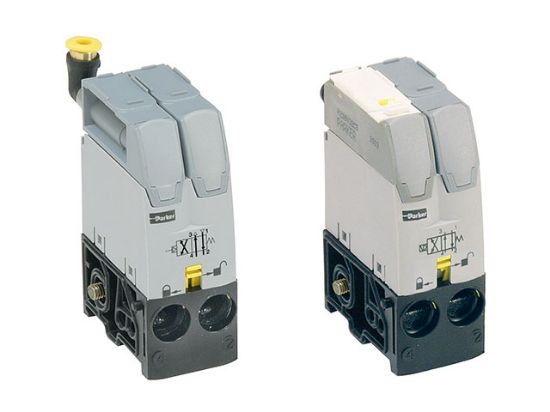

Moduflex T Series - Size 1 Valve - P2M1T4PP

Name: Moduflex T Series - Size 1 Valve - P2M1T4PP
SKU: P2M1T4PP

Parker flexible manifold valve system for individual solenoid wiring for use with integrated Push-to-Connect fittings

Availability:

Backordered

SKU P2M1T4PP

$86.52

Products specifications

Attribute name	Attribute value
UOM	EA	UOM	EA
Pkg Qty	1	Operator Type Detail	Double
Pilot Supply	Internal	Override Type	Multi-function
CV Factor	0.32	Operator Type	Air Piloted
Parker Group	Automation	Parker Division	Pneumatic
Valve Passages	4-way	Valve Positions	2-position
Operator Type	Air Piloted	Operator Type Detail	Double
Pilot Supply	Internal	Series	Moduflex
Operating Temperature	5°F to 140°F (-15°C to 60°C)	Trade Name	Moduflex
Supply Pressure Range	Vacuum to 123 PSIG (Vacuum to 8.3 bar)	Override Type	Multi-function
CV Factor	0.32	Pneumatic Valve Type	Manifold Valve
Solenoid Connection	M8	Series Type	T Series - Size 1
