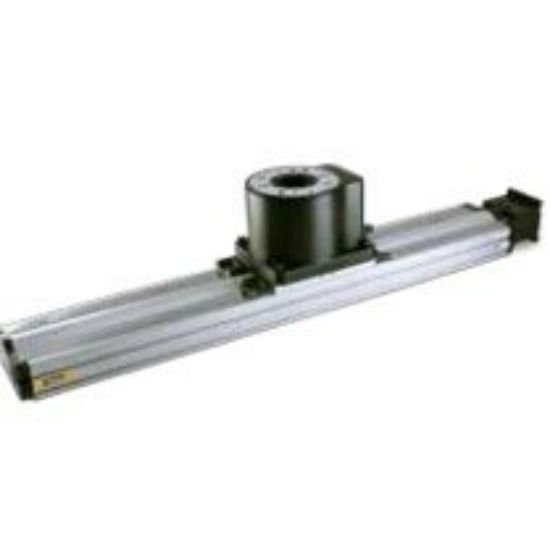

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

MPR100DAE1H3N

Manufacturer: Parker Hannifin

Availability:	Backordered Estimated Lead Time: 3 days
Partner Available:	Backordered

SKU MPR100DAE1H3N

Products specifications

Attribute name	Attribute value
UOM	EA	Type	Direct Drive Precision Rotary
Magnet Pitch	60 Deg	Stage Mass	2.9 kg
Motor Cable Diameter	7.5 mm	Stall Current	3.79 Arms
Radial Runout	6 µm	Axial Runout	6 µm
Max Bus Voltage	340 VDC	Diameter	104 mm
Peak Current	11.95 Arms	Inductance	8.9 mH
Winding Thermal Resistance	1.02 °C / Watt	Wobble	12.5 Arc-Sec
Moving Mass	1.0 kg	Travel Degrees	360
Max Velocity	600 RPM	Resistance	3.9 Ohm
Voltage Constant	41.28 Vrms/krpm	Maximum Load	12.0 kg
Torque Constant	0.68 Nm/Arms	Stall Torque Continuous	2.0 Nm
Peak Torque	6.2 Nm	Max Winding Temperature	125 °C
