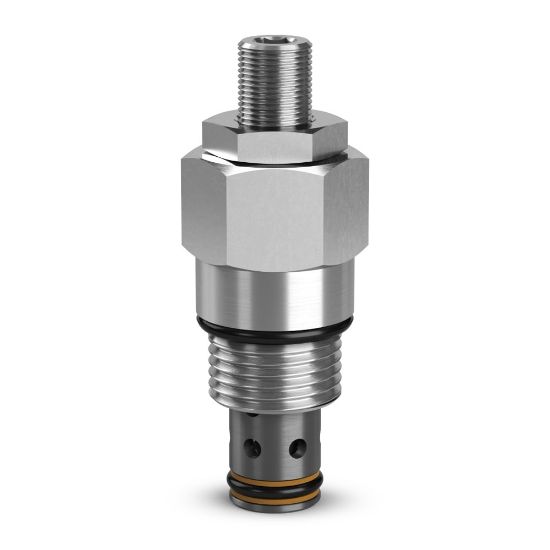

J02A2ZN - Needle Flow Control Valves

Parker offers standard needle valves and needle valves with a reverse free-flow check. Parker’s needle valves are non-compensated adjustable orifices capable of flows up to 225 lpm (60 gpm) and pressures as high as 420 bar (6000 psi).

Availability:	Backordered Estimated Lead Time: 133 days
Partner Available:	Backordered

SKU J02A2ZN

$123.14/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Seal Material	Nitrile
Needle Type	Fine	Adjustment Mechanism	Screw
Maximum Inlet Pressure Rating	6000 PSI, 420 BAR	Flow Rate	12 GAL/MIN, 45 L/MIN
Seal Material	Nitrile	Connection Size	n/a
Connection Type	n/a	Body Material	n/a
Maximum Operating Pressure	6000 psi	Maximum Kinematic Viscosity	45-2000 SSU (6 to 420 cSt)
Minimum Operating Temperature	-30 °F	Function	2-Way
Flow Rate	12 Gal/min	Actuation Type	Manual
Needle Type	Fine	Weight	0.11 kg
Cavity Size	C08-2	Installation Torque	30 lb-ft
Adjustment Mechanism	Screw	Maximum Inlet Pressure Rating	420 bar
Maximum Flow Rate	45 L/min	Maximum Operating Temperature	+121 °C
Filter Efficiency Rating	ISO 4406 18/16/13, SAE Class 4	For Fluid Type	Mineral-based or synthetic hydraulic fluids
Valve Material	All parts steel. All operating parts hardened steel	Operation Type	Manually operated
Leak Rate	5 @ 1450 PSI (100 BAR) drops/min	Configuration	Needle
