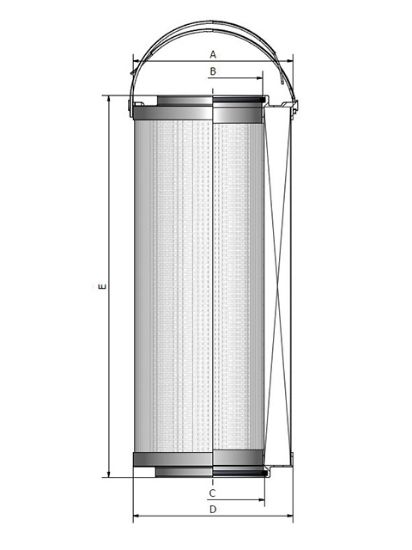

Picture of Replacement Elements - Medium Pressure Filter IL8 Series - 929109

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Replacement Elements - Medium Pressure Filter IL8 Series - 929109

The Parker IL8 Coreless Medium Pressure Filter Series are engineered with the latest in Microglass technology. IL8 Filters utilize a reusable core which remains in service through the life of the assembly.
Availability:
Backordered
SKU 929109
POR
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEALengthdouble
Filter ElementWR Water RemovalFilter Housing SeriesIL82
For Fluid TypeMineral, Petroleum and Polyalphaolefin (PAO) based fluidsDivisionEngine Mobile Hydraulic and Fuel Filtration Division
Filter Element TypeCorelessProduct StyleHydraulic Filter
Product TypeHydraulic Filter ElementUOMEA
Pkg Qty1SealsFKM: Fluorocarbon
Collapse Pressure (bar)10.3 barCollapse Pressure (psi)150 psi
Media TypePar-GelEfficiency βx(C) ≥ 20033 µ
Parker GroupFiltrationParker DivisionHydraulic Filter
SeriesParFitSealsFKM: Fluorocarbon
Inner Support Cylinder MaterialSteel tin platedGlue Side Seam AdhesiveEpoxy
Glue Endcaps AdhesiveEpoxyTop Endcap MaterialGlass reinforced nylon
Bottom Endcap MaterialGlass reinforced nylonB Dimension0.606 in (15.4 mm)
D Dimension6.098 in (154.9 mm)Collapse Pressure (bar)10.3 bar
Collapse Pressure (psi)150 psiMedia Composition DetailAbsorbent Polymer & fiberglass with coated mesh on both sides
Media TypePar-GelCompetitorEPPENSTEINER
E Dimension1.85 in (47 mm)Efficiency βx(C) ≥ 20033 µ
A Dimension6.098 in (154.9 mm)
