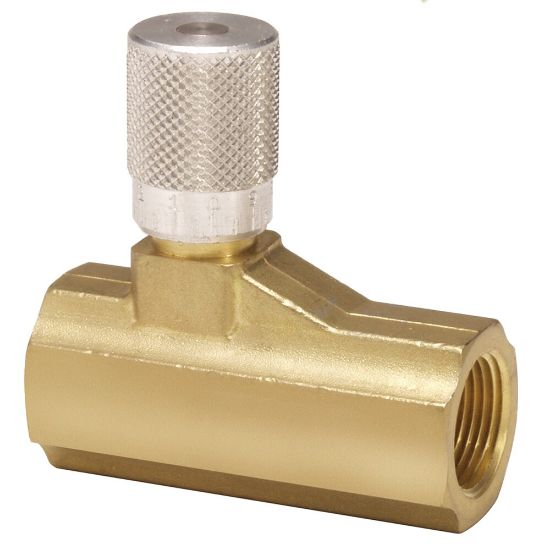

Picture of Needle Valve - 338 Series - 003381104

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Needle Valve - 338 Series - 003381104

The 338 series needle valve bi-directionally meters the flow of air through the valve. The perimeter of the adjustment knob features position markings and an internal fine taper needle, providing precise flow control even at low flow rates.
Availability:
Backordered
SKU 003381104
$128.53
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMEAPort Size (inch)3/4
Port TypeNPTOptionsExtended Temperature Version
Mounting TypeInlineOperating Pressure0 to 250
Port TypeNPTDivisionPneumatic Division
Flow Rate15 to 140 SCFM (metered)Operating Temperature-18 to 82
Flow Coefficient0.28 to 2.62 Cv (metered)Port Size3/4
Seal MaterialUrethaneNeedle MaterialStainless Steel
Product TypeNeedle Control ValveOperation TypeKnob with Micrometer Position
Port ConnectionNPTLubricantNone
MediaAirBody MaterialBrass
