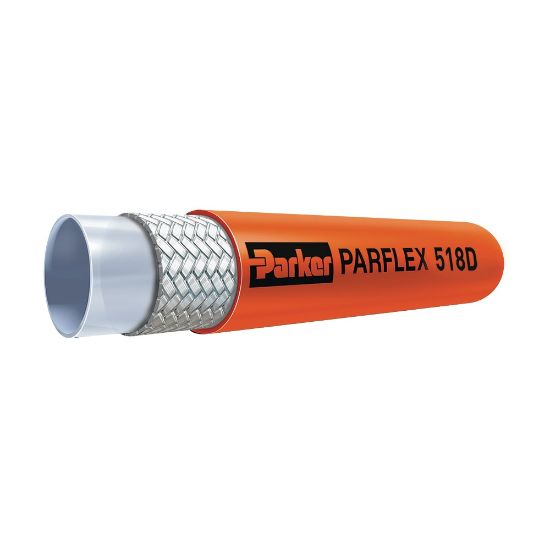

Picture of 518D-12 - Non-Conductive Thermoplastic Hoses - 518D

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

518D-12 - Non-Conductive Thermoplastic Hoses - 518D

Parker’s Non-Conductive 100R7 hose has a high-density braid to handle maximum impulse life. Most 518D sizes feature a nylon core tube. Available as a formed hose and/or bonded hose.
Availability:
12 in stock
Springfield, MO9
Springfield, MO2
Partner Available:529 in stock
Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.
SKU 518D-12
$13.16/foot
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTMaterial - Hose Inner TubeNylon
Hose I.D. (inch)3/4Weight0.21 lb/ft
Cover MaterialPolyurethaneHose Inner Tube MaterialPolyamide (PA)
Minimum Bend Radius127 mmInside Diameter19 mm
Maximum Operating Temperature100 °CMediaLubricants
Size-12Hose Reinforcement MaterialFiber
Minimum Operating Temperature-40 °FDesign Factor4:1
Outside Diameter1.050 inchSpecifications MetANSI A92.2
Maximum Operating Pressure87 barCompatible Fitting56 Series
