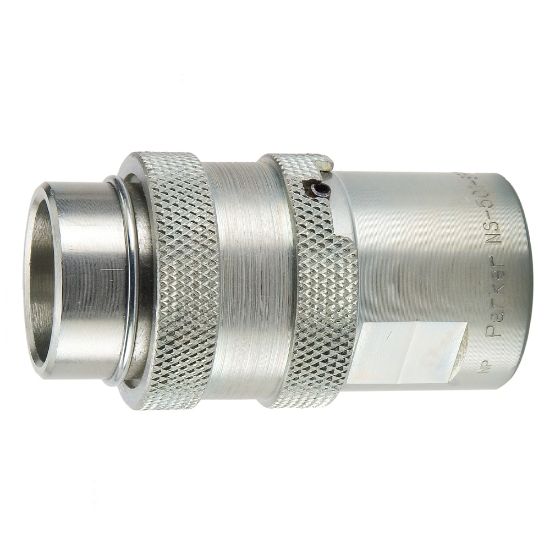

NS-1001-16FB - Non-Spill, Flat Face, Push to Connect Quick Couplings with Sleeve Lock - NS Series

Parker's non-spill, flat face hydraulic couplers are ideal for use across a variety of hydraulic applications where fluid lines require fast and easy connection and disconnection with minimal spillage and limited air inclusion.

Availability:	Backordered Estimated Lead Time: 54 days
Partner Available:	Backordered

SKU NS-1001-16FB

$293.17/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Connection Thread Size (inch)	G 1
Connection Type	Female BSPP	Coupling Half	Female Coupler
Body Size (inch)	1	Flow Rate	50 Gal/min
Hex Size	1.75 inch	Minimum Operating Temperature	-40 °F
Body Material	Steel	Valve Type	Non-spill
Maximum Operating Temperature	250 °F	Locking Sleeve Included	Yes
Plating Type	Zinc with clear trivalent chromate	Maximum Operating Pressure	2500 psi
Seal Material	Nitrile
