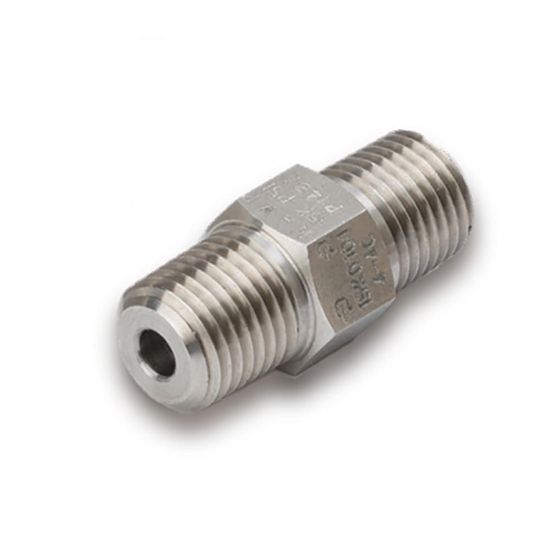

15K0101-4-4C - NPT Adapters

Parker's stainless steel NPT adapters have working pressure ratings from 10,000 psi to 15,000 psi, depending on size.

Availability:	Backordered Estimated Lead Time: 14 days
Partner Available:	5 in stock

SKU 15K0101-4-4C

$124.89/each

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	EA	Shape	Straight
Connection 1 Type	Male NPT	Connection 2 Type	Male NPT
Connection 1 Thread Size	1/4"- 18 NPT	Connection 2 Thread Size	1/4"-18 NPT
Shape	Straight	Materials of Construction	Stainless Steel
Height	n/a	Hex Size	0.63 inch
Overall Length	1.44 inch	Connection 1 Size	1/4"-18 inch
Connection 1 Type	Male	Connection 2 Size	1/4"-18 inch
Connection 2 Type	Male	Maximum Operating Pressure	103 MPa

Product resources

Literature and Reference Materials

Catalog 4900 - Parflex Ultra High Pressure Thermoplastic Hose, Fittings and Accessories--CAT-4900 (PDF)
