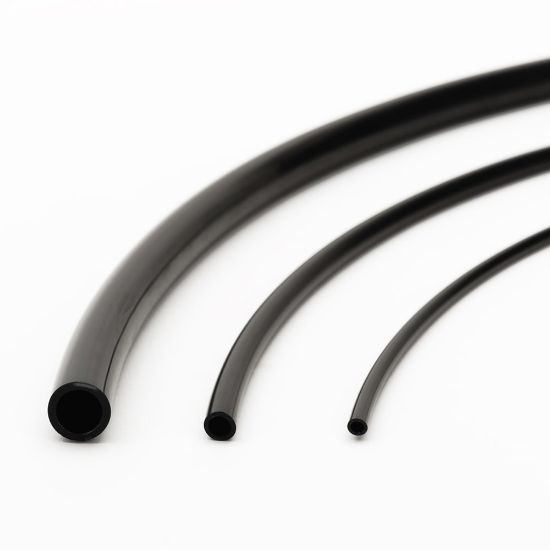

1120-6B-BLK-100 - Nylon Air Brake Tubing

Name: 1120-6B-BLK-100 - Nylon Air Brake Tubing
SKU: 1120-6B-BLK-100
Price: 1.63 USD
Availability: InStock

Parflex makes enough air brake tubing a year to circle the globe twice. Brake Line tubing provides excellent kink resistance. This means reduced, and or, eliminated kinked lines resulting in less rework at installation on semi-truck air lines.

Availability:

184 in stock

TOPEKA, KS	104
Kansas City, KS	80

Partner Available:

8702 in stock

Quantities sourced from Partner Network will incur a 30% upcharge from the displayed price. Unit prices will be adjusted accordingly when these quantities are added to your cart.

SKU 1120-6B-BLK-100

$1.63/foot

Qty:

Bypass upcharge for backordered quantity. Check this box if you prefer to backorder out of stock quantities from Hyspeco for this item, then click Add To Cart.

Products specifications

Attribute name	Attribute value
UOM	FT	Tube O.D. (inch)	3/8
Color	Black	Standard Pack Qty (ft)	100 ft box
Minimum Operating Temperature	-40 °C	Media	Air
Size	-6	Minimum Bend Radius	1-1/2 inch
Tube Outside Diameter	9.5 mm	Color	Black
Maximum Operating Pressure	150 psi	Cover Color	Black
Tube Material	Polyamide (PA) Fiber Reinforcement	Cover Material	Polyamide (PA)
Compatible Fitting	Air Brake	Specifications Met	D.O.T. 49 CFR 571.106
Maximum Operating Temperature	200 °F	Weight	0.027 lb/ft
Tube Inside Diameter	0.251 inch	Minimum Burst Pressure	1400 psi
