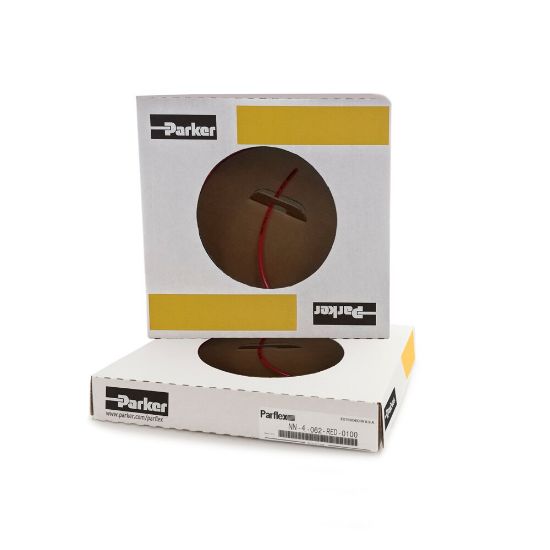

Picture of Nylon Tubing - N-4-035-RED-0100

*PRODUCT IMAGE IS REPRESENTATIVE PROVIDED BY THE MANUFACTURER. DO NOT MAKE BUYING DECISIONS SOLEY BASED ON THE IMAGE. PLEASE VERIFY SPECIFICATIONS MEET YOUR REQUIREMENTS.

Nylon Tubing - N-4-035-RED-0100

Nylon plastic tubing tubing is formulated from abrasion-resistant, heat and light-stabilized nylon that is capable of operating at 200°F. It exhibits low-level water absorption and is chemically resistant. (Series N/NB)
Availability:
Backordered
SKU N-4-035-RED-0100
$1.35
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products specifications
Attribute nameAttribute value
UOMFTOrder Size1/4
ColorRedStandard Pack Qty (ft)100 ft box
DivisionParflex DivisionMaximum Operating Pressure17.2 bar
Size-4Cover Materialn/a
Specifications MetN/AMediaChemicals
ApplicationFluid TransferWeight0.011 lb/ft
Minimum Burst Pressure1000 psiTube Outside Diameter6.4 mm
ColorRedTube MaterialPolyamide (PA)
Maximum Operating Temperature93 °CMinimum Operating Temperature-54 °C
Tube Inside Diameter4.6 mmCompatible FittingHi-Duty
Length per Package34.8 m BoxMinimum Bend Radius22.4 mm
